    10mm ultra narrow 3.7V 120mAh lipo battery

    Short Description:

    10mm lithium polymer battery, one of the smallest width lipo battery of 3.7V 120mAh.

    Description

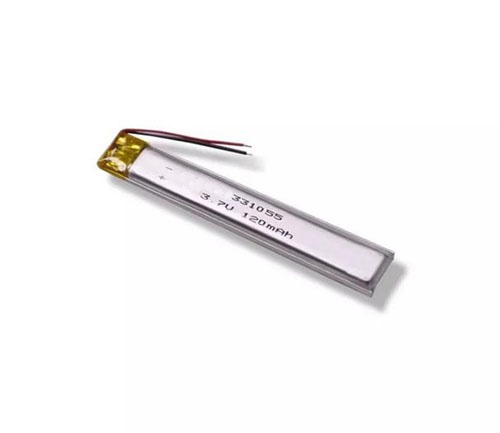

    Narrow type 10 mm wide lithium polymer battery(lipo battery pack)
    Model: PD331055
    Capacity:120mah
    Voltage;3.7V
    Thickness:3.6±0.2mm
    Width:10.0±0.2mm
    Height:57.0±0.5mm
    Weight: about 3.0g
    Recommend charging current: 0.2C
    Standard charging current: 0.5C
    Cable and connectors:standard,recommended or customized are available.
    PCB/PCM:
    Over-charge voltage 4.25V±0.05V
    Over discharge voltage :2.7V±0.1V or 3.0V±0.1V
    Over curernt: 240mA(2.7V~4.25V)customized

    If you don’t find the right model for your application, please do contact Padre sales,they will recommend you the best one among  more than 3000 models now, you can send inquiry with your requirements at below, and you will get reply very soon.
