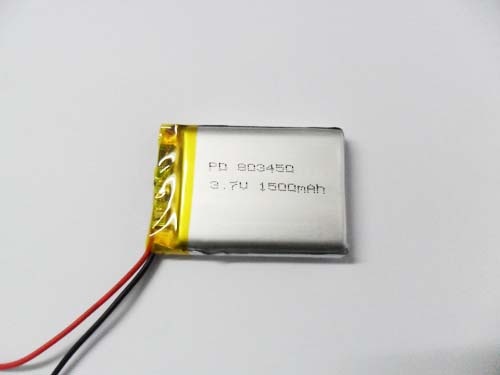

Lithium polymer battery 3.7v 1500mAh PD803450
Lithium polymer battery PD803450
Max size 8mm×34mm×52mm
Rechargeable lithium battery with PCM
Applications: mobile phones,portable power banks, GPS tracker system, laptops,marcs and so on.
Lithium polymer battery 3.7v PD803450 1500mAh from Top LiPo battery manufacturer
- Model: PD803450+PCM+cables
- Capacity: 1500mah
- Voltage; 3.7V
- Thickness: 8.0mm
- Width: 34.0±0.1mm
- Height: 52.0mm max including PCM
- Weight: about 28 g
- Recommend charging current: 0.2C
- Standard charging current: 0.5C
- Recommend discharge current: 0.2C
- Standard discharge current: 0.5C
- Fast discharge current: 1C
- Peak discharge current: 2C
- Cable and connectors: standard,recommended or customized are available.
- PCB/PCM: Japanese IC
- Over-charge voltage: 4.25V±0.05V
- Over discharge voltage : 3.0V±0.1V
- Over curernt: 3000mA(2.7V~4.25V)customized
- Short-circiut protection: Yes.
Note: Website listed models are small part of what we can do, we can make almost all regular sizes and specs according to customer needs, you just need to come to our sales for a battery solution for you. remember you are requiring instead of only choosing.
If you can’t find the right model for your application, please do contact Padre sales,they will recommend you the best one , you can send inquiry with your requirements in the form at bottom of this page, or email to firstname.lastname@example.org, you will get reply very soon.Previous: Internal and external structurer of a Lithium polymer battery cell
