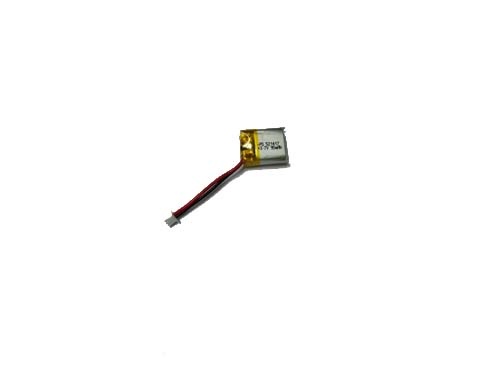

Super small lipo battery 3.7v 95mAh PD521417

Super small lipo battery 3.7v 95mAh PD521417

Short Description:

Super small size lipo battery
3.7v 95mAh high capacity
Max size 5.2mm×14mm×19mm

Rechargeable lithium polymer battery with PCM
Applications: smart watch,small wearable devices or medical monitoring device with connection to bluetooth, headphone, and so on.

Description

Super small size LiPo battery 3.7v 95mAh PD521417 from China LiPo battery manufacturer

  • Model: PD521417+PCM+cables
  • Capacity: 95mah
  • Voltage; 3.7V
  • Thickness: 5.2mm
  • Width: 14.0±0.1mm
  • Height: 19.0mm max including PCM
  • Weight: about 1 g
  • Recommend charging current: 0.2C
  • Standard charging current:  0.5C
  • Recommend discharge current: 0.2C
  • Standard discharge current: 0.5C
  • Fast discharge current: 1C
  • Peak discharge current: 2C
  • Cable and connectors: Molex 51021-0200, other custom connectors are available.
  • PCB/PCM: Japanese IC
  • Over-charge voltage: 4.25V±0.05V
  • Over discharge voltage : 3.0V±0.1V
  • Over curernt: 1000mA(2.7V~4.25V)customized
  • Short-circiut protection: Yes.

Note: Website listed models are small part of what we can do, we can make almost all regular sizes and specs according to customer needs, you just need to come to our sales for a battery solution for you. remember you are requiring instead of only choosing.

For more small lipo battery models click here,  you can also take a look at this comprehensive list

If you can’t find the right model for your application, please do contact Padre sales,they will recommend you the best one , you can send inquiry with your requirements in the form at bottom of this page, or email to sales@pdbattery.com, you will get reply very soon.
