Leading OEM lithium polymer battery manufacturer

Lithium polymer battery list 2019

Lithium polymer battery list 2019

Short Description:

Preface: Known as one of world leading lithium polymer battery manufacturers in global battery supply chain. We specialize in lipo battery cell and pack technologies that are used by global OEMs for different applications.

Description



Contents guidance

1-About PD regular lithium polymer battery

2-How to choose correct lithium polymer battery that fits your needs?

3-Why choose lithium polymer battery from pdbattery.com?

4-Lithium polymer battery lists 2019 by width

5-FAQ



1-About PD regular lithium polymer battery.

Lithium polymer battery is the most important business of Padre Electronics. Among all kinds of polymer lithium batteries, standard ordinary type accounts for 80%, and special battery accounts for 20%. Our daily output has now reached 200K, which can meet most production needs of standard and custom battery orders of different sizes.

[Play the video to know more about PD 3.7v lithium polymer battery]

Different from the special battery, PD regular standard lithium polymer battery mainly refers to a type of polymer lithium battery with the size, shape and temperature endurance in a normal range. (Please click here to find out more about special batteries.)

【Product Photos Display】

Lithium polymer battery cell,lipo cell,li-polymer battery cell, polymer battery cell,polymer cell

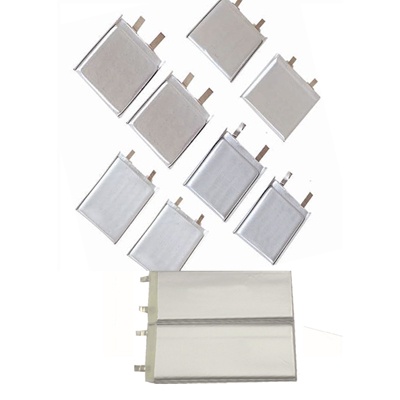

Lithium polymer battery cells

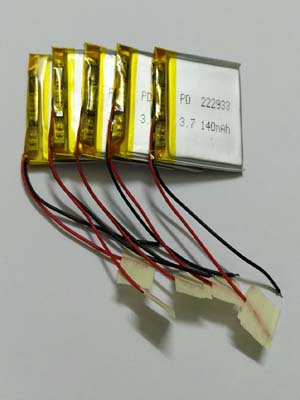

3.7v lithium polymer battery with PCM

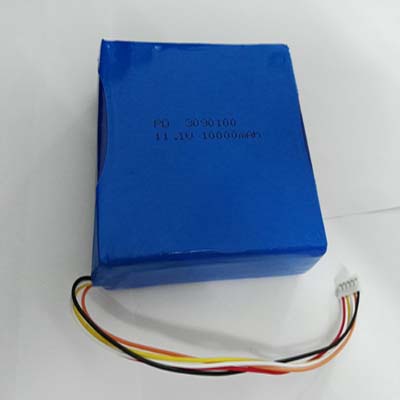

3.7v lithium polymer battery pack

3.7V Li-Polymer battery cell

3.7V Li-Polymer battery cell

















The basic technical parameters of PD normal 3.7v polymer battery are as follows:

Single cell capacity range: 10mA~20000mA.

Nominal voltage: 3.7V

Charging voltage: 4.2V

Discharge cut-off voltage: 2.75V or 3.0V

Maximum continuous discharge rate: 1C

Peak/Pulse discharge rate: 2C

Operating temperature range: -20C~+60C.

Charging temperature range: 0C~+50C.

Cell size range: thickness 2mm~15mm, width 8mm~150mm, length 12mm~250mm.

PD lithium polymer battery applications

A- Consumer electronics.

B- Industrial applications.

C- Military field.

D- Aerospace.

E- Smart home.

F- Wearable device.

G- Transportation.

H- Medical devices.

I- Measurement and testing instruments.

For more information on lithium polymer battery applications, please visit application page. . .


2- How to choose correct lithium polymer battery that fits your product.

a-       First of all, you need to know how much space your device has for the battery.

b-       Then you can determine the maximum length, width and height of the battery.

c-       After that you can select the appropriate model according to this size in our 2019 lithium polymer battery list.

You can also directly ask us to recommend the battery solution. After all, we have much more battery solutions than what is listed on the website. If what you are looking for is a multi-cells lithium polymer battery pack, please contact us directly. And in case you have special requirements for the discharge C rate and temperature resistance, please go to our pages for high rate battery, high and low temperature battery for more information.

Choose lithium polymer battery by the width range

(we can also customize new battery for you).

7mm~10mm       11mm~15mm      16mm~20mm     21mm~25mm       26mm~30mm.

31mm~35mm     36mm~40mm    41mm~50mm     51mm~60mm

Choose different Li-polymer batteries according to the capacity range

(we can also customize new battery for you)

10mAh~100mAh,       100mAh~200mAh,      200mAh~300mAh,   300mAh~400mAh. 400mAh~500mAh,   500mAh~600mAh.      600mAh~700mAh,    700mAh~800mAh, 800mAh~900mAh,    900mAh~1000mAh.    1000mAh~1500mAh,   1500mAh~2000mAh, 2000mAh~2500mAh,   2500mAh~3000mAh,  3500mAh~4000mAh,  4000mAh~12000mAh.

If you want to select the battery according to other standards, you can click below links to go to the relevant page to learn more.

  • -30 ℃ &-40 ℃ low temperature battery and +80 ℃ high temperature battery,
  • ultra-thin battery 0.5mm to 1.5mm
  • Large capacity battery 4000mAh to 50000mAh.
  • Extra small battery,
  • Ultra-narrow battery 6mm to 12mm,
  • Curved battery,
  • Round battery, crescent-shaped battery.
  • Cylindrical polymer battery,
  • 5C~70C high rate battery,
  • RC battery pack,
  • 3C fast charge battery,
  • 3.8V high voltage battery,
  • Some hot-selling lithium battery (cell, battery pack)

Tips:

1- No matter whether you can find the battery you need or not, you can contact us for a battery solution or custom development.

2- If you have any questions, feel free to contact us. You can also check the FAQ at the bottom of this page.

Guidance for how to order the 3.7v lithium polymer battery.

Work flow chart.You choose or let us recommend the battery – >confirmation solution and specifications -> quote ->production sample -> test -> small batch or direct mass production.


3- Why choose lithium polymer battery from pdbattery.com?

Excellent Safety and reliability.

Thanks to our team’s 20 years of battery experience, advanced equipment and strict quality control management. our batteries can pass all kinds of rigorous and destructive testing carried on by our safety labs and third-party organizations. For the past fourteen years, our Li-Po batteries have been sold to all over the world. So far, there has been no record of safety accidents. They are absolutely reliable batteries.

Higher energy density.

The energy density of regular polymer lithium batteries on the market is generally 265 to 350 WH/L, and we can achieve 650 WH/L. This means that we can make it lighter and smaller with the same capacity. And with the same volume, our battery can have higher capacity. This greatly satisfies the needs of some power hungry applications with extremely limited space.

Stable performance.

Many customers don’t understand the lithium polymer battery. They only pay attention to the capacity. In fact, the stability of battery performance is also very important. Otherwise, the battery may swell, leak, possibly the quick voltage drop, big capacity decay, and shortened working time can happen. This will greatly undermine the user experience and impression of your product. Out of question, this is unacceptable. The reason for this problem is complicated, but the main reason is related to the production environment, materials, QC and battery manufacturing equipment.

a-  Production environment, our lithium polymer battery manufacturing base has a beautiful external environment, and the interior is neat and orderly. In order to control the impact of dust on the performance of the battery, we use a 100,000-nanometer dust-free room system for each workshop. All personnel must wear anti-wear when entering the workshop. Electrostatic clothing, anti-static hats, anti-static shoe covers, workshop personnel should wear electrostatic bracelets, and some people needs to wear gloves as well.

b-   Materials, different from some companies in the market that use recycled materials and secondary materials to produce batteries to achieve the purpose of lowering the price. We use only new materials from large manufacturers of formal channels, and carry out inspections of each batch to ensure the materials. The high standard control upon the raw materials ensures better battery performance.

c-   QC, whether it is for raw materials, semi-finished products in the production process, finished batteries, from material feeding to production finishing, we have multiple levels and multiple steps of strict testing from multiple departments, to eliminate potential risks at the source, make sure all problems are solved within ourselves.

  d- Manufacturing Equipment, we use the industry-leading automated manufacturing equipment from Korean and Japan, which saved us labor costs, improved the production efficiency, and also greatly guaranteed the performance stability of the products.

Long cycle life.

As an important performance indicator of lithium polymer batteries, cycle life directly determines the running time of application devices. It is one of the biggest concern and frequently asked question of clients. The cycle life of the Li-Po battery means the total number of charge and discharge cycles performed @ 0.2 C with 100% DOD (depth of discharging) under room temperature, until the capacity reduced to 80%. Due to the use of a high end lithium cobalt oxide raw material, PD 3.7v lithium polymer battery has excellent cycle life performance, can generally reach up to 500 times or even 800 times.

Good Consistency.

Our smart automatic manufacturing equipment does good job on achieving high consistency of Li-Polymer battery cells, which provides excellent battery cells for the production of high-performance battery packs. Because the overall performance of the battery pack made of well-consistent batteries will also be more stable. In addition, the expected service life will be longer too.

Flexible support.

Many projects of product development have necessary process: there are always sample test and small batch trial production stage before mass production. We can provide good full-scale support all the way, from initial sample making to small batch production, and finally to massive volume production.

Convenient to customize new lithium polymer battery.

In addition to several hundred sets of molds and Over 3000 existing battery models, we can also develop more new models based on existing molds. We have our own mold workshop to develop new ones at any time, which greatly expanded our new battery development capability. Hence, we can customize lithium polymer batteries of almost any size, so long as it is within the current level of lithium battery manufacturing technology.

One-to-one on-demand assembly.

We can take the battery assembly solutions for your applications, various brands of various types of connectors, various wire diameters and length leads, Protection circuit board, NTC, IC, PVC, cables outlet location, all of these are subject to you, if you have no idea, you can also consult us or let us recommend.

Available certification supports.

If you need, we can apply all kinds of battery certification required for your lithium polymer battery, such as IEC62133, CB, KC, UN38.3, MSDS, REACH, FCC, UL, CE, ROHS and so on.

Timely delivery.

When the lithium polymer battery cell you need is in stock, our delivery time is usually within one week. If there is no stock, the delivery time is usually within two or three weeks. For mass production, the lead time is one month or so.

Cost effective.

Because the quality of the battery on the market is quite different, so is the price. Our lithium polymer battery is definitely not cheapest. This is determined by the material used in battery manufacturing, the process and battery quality. It makes no sense to compare price with low end battery market. But we are quite sure that among the top high-end lithium polymer battery manufacturers, our battery price is relatively more economical.

Strict battery quality control and testing.

In order to manufacture a lithium polymer battery of high quality and high reliability, our battery quality control is very strict.

A- First, we cover regular tests such as voltage measurements, overcurrent test, short circuit test, charge and discharge, internal resistance test.

B- Secondly, we will also test and record various raw materials in the process, including moisture detection, self-discharge K value test, high and low temperature environmental testing, vacuum testing, etc.

C- Third, we use a dust-free room system to avoid internal short circuit caused by the dust which penetrates the battery separator.

D- Fourth, we will also send batteries to our safety laboratory for safety testing and cycle life testing now and then. The quality of the battery is monitored and guaranteed without any black corner.


4- Lithium polymer battery list 2019 by width.

3.7v Lithium polymer battery list with the battery width in range of 7mm~10mm.Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××0728 PD300728 3.7 40 3.0 7 28
2 ××0735 PD470735 3.7 60 4.7 7 35
3 ××0735 PD540735 3.7 60 5.4 7 35
4 ××0741 PD440741 3.7 65 4.4 7 41
5 ××0819 PD350819 3.7 35 3.5 8 19
6 ××0820 PD400820 3.7 20 4.0 8 20
7 ××0826 PD500826 3.7 70 5 8.3 26
8 ××0828 PD360828 3.7 55 3.6 8 28
9 ××0829 PD360829 3.7 60 3.6 8 29
10 ××0835 PD300835 3.7 30 3.0 8 35
11 ××0835 PD350835 3.7 50 3.5 8 35
12 ××0863 PD290863 3.7 90 2.9 8 63
13 ××0920 PD360920 3.7 40 3.6 9.5 20.5
14 ××0922 PD310922 3.7 50 3.1 9 22
15 ××0925 PD350925 3.7 55 3.5 9 25
16 ××0926 PD240926 3.7 37 2.4 9 26
17 ××0926 PD300926 3.7 55 3 9 26
18 ××0928 PD390928 3.7 60 3.9 9 28
19 ××0932 PD400932 3.7 85 4 9.5 32
20 ××0935 PD500935 3.7 120 5 9.5 35.5
21 ××0937 PD300937 3.7 68 3 9.5 37.5
22 ××0937 PD390937 3.7 95 3.9 8.8 37
23 ××0966 PD370966 3.7 200 3.7 9.5 66.5
24 ××0968 PD410968 3.7 250 4.1 9.85 68
25 ××1012 PD501012 3.7 35 5 10 12
26 ××1013 PD351013P 3.7 15 3.5 9.8 13.5
27 ××1014 PD301014 3.7 28 3 10.5 14.5
28 ××1015 PD301015 3.7 15 3.0 10 15
29 ××1015 PD451015 3.7 30 4.5 10 15
30 ××1015 PD601015 3.7 60 6.0 10 15
31 ××1017 PD401017 3.7 35 4.0 10 17
32 ××1017 PD531017 3.7 50 5.3 10 17
33 ××1018 PD381018 3.7 35 3.8 10.5 18.5
34 ××1018 PD381018 3.7 35 3.8 10.5 18.5
35 ××1018 PD401018 3.7 40 4 10.5 18.5
36 ××1018 PD401018 3.7 40 4 10.5 18.5
37 ××1018 PD431018 3.7 50 4.3 10.5 18.5
38 ××1018 PD451018 3.7 50 4.5 10.5 18.5
39 ××1019 PD301019 3.7 30 3 10 19
40 ××1019 PD401019 3.7 50 4 10 19
41 ××1020 PD251020 3.7 25 2.7 10.8 20.8
42 ××1020 PD301020 3.7 30 3.2 11 20.8
43 ××1020 PD331020 3.7 40 3.4 11 20.5
44 ××1020 PD351020 3.7 40 3.4 10 20.5
45 ××1020 PD401020 3.7 55 4.0 10 20
46 ××1020 PD461020 3.7 60 4.6 10 20
47 ××1021 PD301021 3.7 35 3.0 10 21
48 ××1021 PD321021 3.7 45 3.2 10 21
49 ××1024 PD321024 3.7 50 3.4 10.4 24
50 ××1024 PD361024 3.7 55 3.6 10.4 24
51 ××1024 PD541024 3.7 95 5.4 10 24.5
52 ××1025 PD301025 3.7 40 3 10.5 25.5
53 ××1025 PD371025 3.7 50 3.7 10.5 25.5
54 ××1025 PD351025 3.7 60 3.5 10.5 25.5
55 ××1025 PD401025 3.7 70 4 10 25
56 ××1025 PD501025 3.7 85 5 10.5 25.5
57 ××1027 PD301027G 3.7 45 3 10.3 28.2
58 ××1027 PD501027 3.7 80 5 10.3 27.5
59 ××1028 PD291028 3.7 53 3 10.5 28.5
60 ××1028 PD351028 3.7 75 3.5 10.5 28.5
61 ××1029 PD301029 3.7 60 2.95 10 29.5
62 ××1029 PD411029 3.7 85 4.1 10.5 29.5
63 ××1030 PD201030 3.7 36 2 10 30
64 ××1030 PD301030 3.7 60 3.0 10 30
65 ××1030 PD351030 3.7 68 3.5 10 30
66 ××1030 PD371030 3.7 70 3.7 10.5 30.5
67 ××1030 PD401030 3.7 80 4.2 10.5 30.5
68 ××1030 PD471030 3.7 90 4.7 10 30
69 ××1030 PD421030 3.7 95 4.2 10.5 30.5
70 ××1030 PD451030 3.7 100 4.5 10.5 30.5
71 ××1030 PD501030 3.7 100 5.0 10 30
72 ××1030 PD491030 3.7 105 4.9 10 30
73 ××1033 PD301033 3.7 70 3.2 10.5 33.5
74 ××1033 PD441033 3.7 120 4.4 10.8 33.5
75 ××1035 PD271035 3.7 55 2.7 10 35
76 ××1035 PD301035 3.7 75 3.0 10 35
77 ××1040 PD381040 3.7 110 3.8 10 40
78 ××1040 PD501040 3.7 150 5.0 10 40
79 ××1040 PD401045 3.7 150 4 10.5 45.5
80 ××1040 PD471045 3.7 170 4.7 10.5 45.5
81 ××1055 PD401114 3.7 40 4.0 11 14
82 ××1055 PD301055 3.7 135 3.0 10 55
83 ××1055 PD351055 3.7 150 3.5 10 55

3.7v Lithium polymer battery list with the battery width in range of 11mm~15mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××1118 PD651118 3.7 80 6.5 11.5 18.5
2 ××1119 PD401119 3.7 55 4 11.5 19.5
3 ××1119 PD501119 3.7 75 5 11 19
4 ××1120 PD401120 3.7 45 4.0 11 20
5 ××1120 PD481120 3.7 70 4.8 11.5 20.5
6 ××1121 PD351121 3.7 50 3.5 11 21
7 ××1121 PD401121 3.7 60 4.0 11 21
8 ××1123 PD351123 3.7 45 3.5 11.5 23.5
9 ××1124 PD231124 3.7 25 2.3 11.5 24.5
10 ××1124 PD401124 3.7 80 4.15 11.3 25
11 ××1124 PD451124 3.7 85 4.5 11.5 24.5
12 ××1124 PD541124 3.7 95 5.4 11.5 24.5
13 ××1125 PD301125 3.7 50 3.0 11 25
14 ××1125 PD401125 3.7 80 4.0 11 25
15 ××1126 PD721126 3.7 145 7.2 11.3 26.5
16 ××1132 PD341132 3.7 90 3.4 11.5 32.5
17 ××1132 PD391132 3.7 110 3.95 12 32.5
18 ××1132 PD491132 3.7 145 4.9 11.8 32
19 ××1133 PD421133 3.7 120 4.2 11.5 33.5
20 ××1134 PD501134 3.7 150 5.0 11 34
21 ××1135 PD351135 3.7 100 3.5 11.5 35.5
22 ××1135 PD401135 3.7 120 4 12 35.5
23 ××1135 PD431135 3.7 130 4.3 11.5 45.5
24 ××1135 PD601135 3.7 160 6.0 11 35
25 ××1135 PD651135 3.7 180 6.5 11 35
26 ××1144 PD421144 3.7 155 4.2 11 44
27 ××1145 PD431145 3.7 160 4.3 11.5 35.5
28 ××1145 PD451145 3.7 160 4 11.5 45.5
29 ××1160 PD521160 3.7 300 5.2 11.5 60.5
30 ××1165 PD431165 3.7 250 4.5 11.2 65.5
31 ××1212 PD481212 3.7 30 4.8 12 12
32 ××1214 PD461214 3.7 45 4.6 12 14
33 ××1214 PD581214 3.7 55 5.8 12 14
34 ××1215 PD301215 3.7 25 3.2 12.5 15.5
35 ××1215 PD401215 3.7 40 4 12.5 15.5
36 ××1215 PD381215 3.7 45 3.8 12.5 15.5
37 ××1215 PD451215 3.7 45 4.5 12.5 15.5
38 ××1215 PD501215 3.7 60 5 12.5 15.5
39 ××1215 PD601215 3.7 65 6 12 15
40 ××1216 PD401216 3.7 42 4 11.8 16.5
41 ××1216 PD451216 3.7 45 4.4 11 16.5
42 ××1218 PD301218 3.7 35 3.0 12 18
43 ××1218 PD501218 3.7 65 5 12.5 18.5
44 ××1218 PD601218 3.7 100 6 12.5 18.5
45 ××1219 PD351219 3.7 45 3.6 12.5 19
46 ××1219 PD431219 3.7 60 4.3 12 19.5
47 ××1219 PD481219 3.7 70 4.9 12.5 19.5
48 ××1219 PD581219 3.7 80 5.8 12.5 19.7
49 ××1219 PD751219 3.7 100 7.5 12.5 19.7
50 ××1220 PD251220 3.7 30 2.5 12 20
51 ××1220 PD301220 3.7 40 3.0 12 20
52 ××1220 PD401220 3.7 60 4.2 12.5 20.5
53 ××1220 PD431220 3.7 65 4.3 12.5 20.5
54 ××1220 PD451220 3.7 75 4.6 12.5 20.5
55 ××1220 PD501220 3.7 80 5.0 12 20
56 ××1220 PD531220 3.7 85 5.3 12 20
57 ××1220 PD601220 3.7 100 6.0 12 20
58 ××1221 PD281222 3.7 48 2.8 12.5 23
59 ××1221 PD461221 3.7 65 4.6 12 21
60 ××1222 PD401222 3.7 70 4.0 12 22
61 ××1222 PD481222 3.7 85 4.8 12 22
62 ××1223 PD321223 3.7 55 3.3 12 23
63 ××1223 PD361223 3.7 65 3.6 12 23
64 ××1223 PD501223 3.7 95 5.0 12 23
65 ××1225 PD301225 3.7 65 3.0 12 25
66 ××1225 PD371225 3.7 65 3.7 12 25
67 ××1225 PD401225 3.7 80 4.2 12.5 25.5
68 ××1225 PD421225 3.7 90 4.2 12.5 25.5
69 ××1225 PD451225 3.7 95 4.5 12 25
70 ××1225 PD501225 3.7 105 5.0 12 25
71 ××1225 PD551225 3.7 110 5.5 12 25
72 ××1225 PD651225 3.7 150 6.5 12 25
73 ××1228 PD401228 3.7 100 4 12.5 28.5
74 ××1228 PD451228 3.7 120 4.5 12 28
75 ××1228 PD601228 3.7 130 6.0 12 28
76 ××1230 PD311230 3.7 80 3.1 12 30
77 ××1230 PD351230 3.7 100 3.5 12.5 30.5
78 ××1230 PD451230 3.7 120 4.5 12.5 30.5
79 ××1230 PD481230 3.7 125 4.8 12.5 30.5
80 ××1230 PD501230 3.7 135 5 12.5 30.5
81 ××1230 PD551230 3.7 145 5.5 12.5 30.5
82 ××1230 PD601230 3.7 170 6 12.5 30.5
83 ××1232 PD521232 3.7 155 5.2 12.5 32.5
84 ××1232 PD651232 3.7 190 6.5 12 32
85 ××1233 PD321233 3.7 90 3.2 12 33
86 ××1235 PD271235 3.7 65 2.7 12 35
87 ××1235 PD301235 3.7 80 3 12.5 35.5
88 ××1235 PD351235 3.7 100 3.5 12 35
89 ××1235 PD381235 3.7 110 3.8 12 35
90 ××1235 PD401235 3.7 120 4 12.5 35.5
91 ××1235 PD471235 3.7 140 4.7 12 35
92 ××1235 PD451235 3.7 150 4.5 12.5 35.5
93 ××1235 PD501235 3.7 150 5 12.5 35.5
94 ××1235 PD561235 3.7 180 5.6 12 35
95 ××1235 PD581235 3.7 190 5.8 12 35
96 ××1235 PD651235 3.7 200 6.5 12 35
97 ××1240 PD501240 3.7 180 5 12.5 40.5
98 ××1240 PD561240 3.7 200 5.6 12.5 40.5
99 ××1240 PD641240 3.7 250 6.4 12.5 40.5
100 ××1245 PD351245 3.7 150 5 12.5 45.5
101 ××1245 PD401245 3.7 180 4 12.5 45.5
102 ××1245 PD501245 3.7 220 5.0 12 45
103 ××1245 PD601245 3.7 270 6.0 12 45
104 ××1245 PD651245 3.7 280 6.5 12 45
105 ××1248 PD321248 3.7 140 3.2 12 48
106 ××1264 PD351264 3.7 210 3.5 12 64
107 ××1265 PD621265 3.7 450 6.2 12.5 65.5
108 ××1314 PD251314 3.7 30 2.5 13 14
109 ××1317 PD301317 3.7 40 3.5 12.5 16
110 ××1320 PD301320 3.7 50 3.2 13.5 20.5
111 ××1320 PD361320 3.7 68 3.8 13.5 20.5
112 ××1322 PD451322 3.7 65 4.5 13 22
113 ××1322 PD581322 3.7 120 5.8 13 22
114 ××1323 PD451323 3.7 100 4.5 13 23
115 ××1323 PD501323 3.7 100 5 13.5 23.5
116 ××1323 PD671323 3.7 150 6.8 13.5 23.5
117 ××1323 PD701323 3.7 160 7.5 13.5 23.5
118 ××1326 PD451326 3.7 105 4.5 13.5 26.5
119 ××1335 PD581335 3.7 190 5.8 13 35
120 ××1345 PD471345 3.7 250 4.7 13.5 45.5
121 ××1358 PD551358 3.7 430 5.5 13.5 58.5
122 ××1415 PD401415 3.7 200 4.0 14 15
123 ××1417 PD551417 3.7 95 5.5 14 17
124 ××1417 PD701417 3.7 110 7 14.5 17.5
125 ××1417 PD801417 3.7 120 8 14.5 17.5
126 ××1419 PD251419 3.7 35 2.5 14.5 19.5
127 ××1419 PD391419 3.7 65 3.9 14.5 19.5
128 ××1419 PD501419 3.7 90 5 14.5 19.5
129 ××1419 PD551419 3.7 100 5.5 14.5 19.5
130 ××1419 PD751419 3.7 135 7.3 13.8 19
131 ××1420 PD351420 3.7 65 3.5 14 20
132 ××1420 PD451420 3.7 90 4.5 14 20
133 ××1421 PD401421 3.7 70 4.0 14 21
134 ××1422 PD401422 3.7 80 4 14.5 22.5
135 ××1422 PD451422 3.7 95 4.45 14.3 22.5
136 ××1422 PD511422 3.7 110 5.1 14.5 22.5
137 ××1423 PD301423 3.7 65 3 14.5 23.5
138 ××1423 PD501423 3.7 115 5.2 14.5 23.5
139 ××1425 PD331425 3.7 90 3.3 14 25
140 ××1425 PD401425 3.7 100 4.1 14.3 25
141 ××1425 PD501425 3.7 140 5 14.5 25
142 ××1427 PD371427 3.7 100 3.7 14 27
143 ××1427 PD431427 3.7 120 4.3 14 27
144 ××1428 PD301428 3.7 80 3.1 14.5 28.5
145 ××1428 PD401428 3.7 110 4 15.5 28.5
146 ××1428 PD421428 3.7 120 4.2 14.8 28.8
147 ××1429 PD401429 3.7 130 4.2 14.5 29.5
148 ××1429 PD701429 3.7 220 7.3 14.5 29.8
149 ××1430 PD301430 3.7 80 3.0 14 30
150 ××1430 PD331430 3.7 100 3.3 14 30
151 ××1430 PD381430 3.7 100 3.8 14 30
152 ××1430 PD401430 3.7 130 4.0 14 30
153 ××1430 PD451430 3.7 150 4.5 14 30
154 ××1430 PD501430 3.7 160 5.0 14 30
155 ××1430 PD521430 3.7 170 5.2 14 30
156 ××1430 PD601430 3.7 220 6.0 14 30
157 ××1435 PD351435 3.7 130 3.5 14.5 35.5
158 ××1435 PD501435 3.7 200 5 14.5 35.5
159 ××1435 PD601435 3.7 240 6.2 14.5 35.5
160 ××1435 PD751435 3.7 290 7.5 14.5 35.5
161 ××1439 PD281439 3.7 115 2.8 14 39.5
162 ××1439 PD531439 3.7 260 5.5 14.3 39.5
163 ××1439 PD701439 3.7 320 7.1 14.5 39.5
164 ××1440 PD401440 3.7 190 3.9 14.3 39.5
165 ××1442 PD451442 3.7 220 4.6 13.5 42
166 ××1442 PD451442 3.7 250 4.6 13.7 42
167 ××1447 PD601447 3.7 350 6 14 47.5
168 ××1447 PD901447 3.7 520 8.95 14.3 47
169 ××1452 PD651452 3.7 420 6.5 14.5 52.5
170 ××1454 PD701454 3.7 450 7 14.5 54
171 ××1454 PD681454 3.7 460 6.8 14.5 54.5
172 ××1455 PD401455 3.7 270 4.0 14 55
173 ××1458 PD601458 3.7 430 6 14.5 58.5
174 ××1514 PD481514 3.7 65 4.8 15 14
175 ××1515 PD201515 3.7 22 2 15 15
176 ××1515 PD401515 3.7 48 4.2 15.5 15.5
177 ××1515 PD661515 3.7 85 6.6 15 15.5
178 ××1516 PD421516 3.7 50 4.2 15 16
179 ××1517 PD231517 3.7 25 2.3 15.6 17
180 ××1518 PD421518 3.7 80 4.2 14.5 18.5
181 ××1518 PD701518 3.7 140 7.2 15.5 18.5
182 ××1519 PD581519 3.7 100 5.8 15 19.5
183 ××1519 PD201519 3.7 1091 2.2 16 19.8
184 ××1520 PD301520 3.7 70 3.0 15 20
185 ××1522 PD501522 3.7 100 5.0 15 22
186 ××1523 PD331523 3.7 70 3.3 15 23
187 ××1523 PD421523 3.7 110 4.2 15 23
188 ××1523 PD451523 3.7 120 4.5 15 23
189 ××1525 PD251525 3.7 65 2.7 15.5 25.5
190 ××1525 PD301525 3.7 80 3.1 15.5 25.5
191 ××1525 PD451525 3.7 120 4.5 15.5 25.5
192 ××1525 PD551525 3.7 160 5.5 15.5 25.5
193 ××1525 PD601525 3.7 180 6.2 15.5 25.5
194 ××1528 PD351528 3.7 80 3.5 15 28
195 ××1528 PD501528 3.7 150 5.0 15 28
196 ××1528 PD581528 3.7 210 5.8 15.5 28
197 ××1533 PD301533 3.7 100 3.0 15 33
198 ××1533 PD501533 3.7 200 5.2 15.5 33.5
199 ××1533 PD561533 3.7 220 5.6 15 33
200 ××1533 PD601533 3.7 230 6 15.5 33.5
201 ××1534 PD581534 3.7 250 5.8 15 34
202 ××1534 PD651534 3.7 260 6.5 15 34
203 ××1535 PD601535 3.7 280 6.3 15.5 35.5
204 ××1536 PD501536 3.7 200 5.0 15 36
205 ××1539 PD601539 3.7 300 6 15.5 39.5
206 ××1540 PD401540 3.7 220 4.5 15.5 40.5
207 ××1540 PD501540 3.7 250 5 15.5 40.5
208 ××1542 PD501542 3.7 260 5.0 15 42
209 ××1545 PD441545 3.7 240 4.4 15 45
210 ××1545 PD501545 3.7 250 5.0 15 45
211 ××1549 PD301549 3.7 180 3.0 15 49
212 ××1549 PD461549 3.7 280 4.6 15 49
213 ××1549 PD571549 3.7 380 5.7 15 49
214 ××1550 PD301550 3.7 185 3 15.5 50.5
215 ××1550 PD401550 3.7 280 4.2 15.5 50.5
216 ××1554 PD371554 3.7 260 3.7 15 54
217 ××1555 PD601555 3.7 440 6.2 15.5 55.5
218 ××1556 PD481556 3.7 380 4.8 15 56
219 ××1572 PD381572 3.7 360 3.8 15.5 72.5
220 ××1572 PD631572 3.7 740 6.5 16 72.5

3.7v Lithium polymer battery list with the battery width in range of 16mm~20mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××1615 PD291615 3.7 35 2.9 16.5 15.5
2 ××1620 PD311620 3.7 50 3.1 16 20
3 ××1622 PD601622 3.7 165 6 16.2 22
4 ××1623 PD401623 3.7 100 4 16.5 23.5
5 ××1624 PD351624 3.7 90 3.5 16.5 24.5
6 ××1624 PD481624 3.7 120 4.5 16.5 23.5
7 ××1624 PD501624 3.7 120 4.7~5.1 16.5 22
8 ××1624 PD801624 3.7 200 8.2 16.2 22.5
9 ××1628 PD301628 3.7 85 3.0 16 28
10 ××1629 PD251629 3.7 90 2.5 16 29
11 ××1629 PD401629 3.7 160 4 16.5 29.5
12 ××1630 PD471630 3.7 160 4.7 16 30
13 ××1630 PD501630 3.7 200 5 16.5 30.5
14 ××1635 PD261635 3.7 110 2.6 16 35
15 ××1635 PD451635 3.7 200 4.5 16.5 35.5
16 ××1636 PD501636 3.7 250 5.0 16 36
17 ××1639 PD451639 3.7 240 4.5 16 39
18 ××1639 PD551639 3.7 280 5.5 16 39
19 ××1640 PD351640 3.7 190 3.5 16.5 40.5
20 ××1640 PD451640 3.7 250 4.5 16.5 40.5
21 ××1643 PD301643 3.7 175 3 16 43.5
22 ××1643 PD361643 3.7 200 3.6 16.5 43.5
23 ××1643 PD501643 3.7 280 5 16.5 43.5
24 ××1643 PD551643 3.7 330 5.7 16.5 43.5
25 ××1643 PD551643 3.7 330 5.5 16.5 43.5
26 ××1643 PD751643 3.7 430 7.5 16.5 43.5
27 ××1643 PD901643 3.7 560 8.95 16.3 44
28 ××1646 PD501646 3.7 300 5 16.5 46.5
29 ××1646 PD541646 3.7 380 5.35 16.4 46
30 ××1646 PD631646 3.7 430 6.3 16.8 46.8
31 ××1646 PD651646 3.7 450 6.5 16.8 46.5
32 ××1646 PD781646 3.7 550 7.8 16.8 46.5
33 ××1646 PD851646 3.7 600 8.5 16.8 46.5
34 ××1646 PD901646 3.7 630 9 16.8 46.5
35 ××1648 PD651648 3.7 460 6.5 16.5 48.5
36 ××1656 PD521656 3.7 420 5.2 16.5 56.5
37 ××1663 PD601663 3.7 620 16.5 63
38 ××1680 PD701680 3.7 750 6.9 16 80
39 ××1695 PD481695 3.7 740 4.9 16.5 95.5
40 ××1716 PD401716 3.7 60 4 17 16
41 ××1717 PD401717 3.7 60 4.0 17 17
42 ××1717 PD551717 3.7 75 5.5 17 17
43 ××1717 PD601717 3.7 85 6.0 17 17
44 ××1719 PD621719 3.7 120 6.2 17 19
45 ××1720 PD301720 3.7 65 3.0 17 20
46 ××1720 PD361720 3.7 80 3.6 17.5 20.5
47 ××1720 PD401720 3.7 80 4.0 17 20
48 ××1720 PD501720 3.7 110 5 17.5 20.5
49 ××1720 PD601720 3.7 120 6.0 17 20
50 ××1723 PD401723 3.7 105 4.0 17 23
51 ××1723 PD491723 3.7 135 4.9 17 23
52 ××1723 PD551723 3.7 150 5.5 17 23
53 ××1723 PD651723 3.7 180 6.5 17 23
54 ××1725 PD331725 3.7 100 3.3 17 25
55 ××1725 PD371725 3.7 110 3.7 17 25
56 ××1725 PD401725 3.7 110 4.0 17 25
57 ××1725 PD381725 3.7 120 3.8 17 25
58 ××1725 PD431725 3.7 130 4.3 17 25
59 ××1727 PD501727 3.7 175 5.0 17 27
60 ××1730 PD301730 3.7 110 3 17.5 30.5
61 ××1730 PD371730 3.7 140 3.7 17 30
62 ××1730 PD401730 3.7 160 4.0 17 30
63 ××1730 PD431730 3.7 170 4.3 17 30
64 ××1730 PD501730 3.7 200 5.0 17 30
65 ××1730 PD581730 3.7 220 5.8 17 30
66 ××1730 PD681730 3.7 250 6.8 17 30
67 ××1730 PD691730 3.7 260 6.9 17 30
68 ××1732 PD351732 3.7 140 3.5 17 32
69 ××1732 PD381732 3.7 160 3.8 17 32
70 ××1732 PD451732 3.7 210 4.5 17 32
71 ××1733 PD401733 3.7 180 4.0 17 33
72 ××1733 PD451733 3.7 215 4.5 17 33
73 ××1733 PD551733 3.7 250 5.5 17 33
74 ××1733 PD701733 3.7 300 7.0 17 33
75 ××1735 PD601735 3.7 250 6.0 17 35
76 ××1735 PD691735 3.7 320 6.9 17 35
77 ××1736 PD371736 3.7 175 3.7 17 36
78 ××1736 PD401736 3.7 185 4.0 17 36
79 ××1736 PD471736 3.7 260 4.4~4.7 17.7 36.5
80 ××1738 PD451738 3.7 250 4.5 17.5 37.5
81 ××1738 PD961738 3.7 500 9.6 17.5 37.5
82 ××1740 PD401740 3.7 200 4.0 17 40
83 ××1740 PD561740 3.7 300 5.6 17 40
84 ××1741 PD601740 3.7 320 60 17.5 40.5
85 ××1742 PD701740 3.7 420 7.0 17 40
86 ××1743 PD291743 3.7 180 2.9 17 43
87 ××1744 PD501744 3.7 320 5 17.5 44.5
88 ××1745 PD301745 3.7 180 3 17.5 45.5
89 ××1745 PD451745 3.7 280 4.5 17.5 45.5
90 ××1748 PD901748 3.7 660 9 17.5 48.5
91 ××1750 PD601750 3.7 420 6.0 17 50
92 ××1752 PD351752 3.7 280 3.5 17.5 52.5
93 ××1752 PD531752 3.7 400 5.3 17.5 52.5
94 ××1752 PD801752 3.7 730 8.2 17.5 52.5
95 ××1753 PD551753 3.7 400 5.5 17 53
96 ××1760 PD831760 3.7 890 8.2 17.6 60.5
97 ××1765 PD401765 3.7 420 4.0 17 65
98 ××1765 PD601765 3.7 550 6.0 17 65
99 ××1765 PD701765 3.7 650 7.0 17 65
100 ××1765 PD801765 3.7 770 8.0 17 65
101 ××1770 PD501770 3.7 570 5.0 17 70
102 ××18122 PD7518122 3.7 1800 7.5 18 122
103 ××1818 PD301818 3.7 60 3 18.5 19
104 ××1818 PD601818 3.7 135 6 18 18.5
105 ××1818 PD801818 3.7 170 8.2 18 19.0.
106 ××1820 PD301820 3.7 65 3.0 18 20
107 ××1820 PD631820 3.7 150 6.3 18 20
108 ××1821 PD701821 3.7 200 7.0 18 21
109 ××1823 PD501823 3.7 140 5.0 18 23
110 ××1830 PD501830 3.7 220 5 18.5 30.5
111 ××1834 PD401834 3.7 200 4.0 18 34
112 ××1834 PD461834 3.7 230 4.75 18.5 34.5
113 ××1834 PD701834 3.7 380 7.1 18.5 34.5
114 ××1834 PD101834 3.7 550 10 18.3 34.8
115 ××1835 PD501835 3.7 275 5 18 30
116 ××1835 PD601835 3.7 330 6 18.5 35.5
117 ××1836 PD471836 3.7 260 4.7 18 36
118 ××1838 PD401838 3.7 240 4 18.3 38
119 ××1838 PD551838 3.7 330 5.7 18.5 37.5
120 ××1841 PD751841 3.7 580 7.6 18.5 41.5
121 ××1841 PD851841 3.7 610 8.5 18.5 41.5
122 ××1860 PD461860 3.7 480 4.6 18.5 60.5
123 ××1860 PD631860 3.7 715 6.3 17.6 60.5
124 ××1866 PD501866 3.7 420 4.9 16.5 63.5
125 ××1872 PD681872 3.7 820 6.8 18 72
126 ××1885 PD451885 3.7 730 4.6 19 85.8
127 ××1885 PD571885 3.7 1000 5.7 18.8 86
128 ××1917 PD321917 3.7 80 3.2 19 17
129 ××1918 PD551918 3.7 140 6 19.5 18.5
130 ××1918 PD821918 3.7 165 8.2 19 18
131 ××1920 PD501920 3.7 130 5.0 19 20
132 ××1921 PD921921 3.7 360 9.25 19.5 21.5
133 ××1922 PD421922 3.7 125 4.2 19.5 22.5
134 ××1922 PD701922 3.7 200 7.0 19 22
135 ××1928 PD501928 3.7 210 5.1 19.5 28.5
136 ××1937 PD401937 3.7 230 4.0 19 37
137 ××1937 PD451937 3.7 270 4.5 19 37
138 ××1937 PD691937 3.7 410 6.9 19 37
139 ××1940 PD461940 3.7 310 4.6 19 40
140 ××1944 PD401944 3.7 290 4.0 19 44
141 ××1945 PD301945 3.7 200 3.0 19 45
142 ××1945 PD351945 3.7 270 3.5 19 45
143 ××1971 PD441971 3.7 580 4.4 19 71
144 ××20100 PD5620100 3.7 950 5.6 20 100
145 ××2019 PD302019 3.7 80 3.0 20 19
146 ××2020 PD202020 3.7 30 2.0 20 20
147 ××2020 PD382020 3.7 100 3.8 20 20
148 ××2020 PD402020 3.7 110 4.0 20 20
149 ××2020 PD452020 3.7 120 4.7 20.5 20.5
150 ××2020 PD502020 3.7 150 5.0 20 20
151 ××2020 PD602020 3.7 180 6.0 20 20
152 ××2022 PD402022 3.7 125 4.0 20 22
153 ××2023 PD302023 3.7 100 3 20.5 23
154 ××2023 PD352023 3.7 110 3.5 20 23
155 ××2023 PD402023 3.7 130 4.0 20 23
156 ××2023 PD452023 3.7 150 4.5 20.5 23.5
157 ××2025 PD242025 3.7 80 2.4 20 25
158 ××2025 PD312025 3.7 95 3.1 20 25
159 ××2025 PD302025 3.7 100 3.0 20 25
160 ××2025 PD352025 3.7 130 3.5 20 25
161 ××2025 PD382025 3.7 145 3.8 20 25
162 ××2025 PD402025 3.7 150 4.0 20 25
163 ××2025 PD452025 3.7 165 4.5 20 25
164 ××2025 PD502025 3.7 190 5.0 20 25
165 ××2025 PD602025 3.7 220 6.0 20 25
166 ××2025 PD652025 3.7 270 6.5 20 25
167 ××2025 PD702025 3.7 310 7.0 20 25
168 ××2026 PD452026 3.7 180 4.5 20 26
169 ××2026 PD502026 3.7 180 5.0 20 26
170 ××2027 PD252027 3.7 85 2.6 20 25.5
171 ××2027 PD442027 3.7 190 4.4 20.5 27.5
172 ××2027 PD522027 3.7 250 5.1 20.5 28
173 ××2028 PD302028 3.7 100 3 20.5 28.5
174 ××2028 PD502028 3.7 220 5.2 20.5 29
175 ××2028 PD602028 3.7 270 6.2 19.8 28
176 ××2028 PD802028 3.7 390 8 20 20.8
177 ××2030 PD232030 3.7 85 2.3 20 30
178 ××2030 PD252030 3.7 120 2.5 20 30
179 ××2030 PD302030 3.7 140 3.0 20 30
180 ××2030 PD332030 3.7 150 3.3 20 30
181 ××2030 PD352030 3.7 170 3.5 20 30
182 ××2030 PD382030 3.7 180 3.8 20 30
183 ××2030 PD402030 3.7 190 4.0 20 30
184 ××2030 PD452030 3.7 215 4.5 20 30
185 ××2030 PD462030 3.7 225 4.6 20 30
186 ××2030 PD482030 3.7 240 4.8 20 30
187 ××2030 PD502030 3.7 250 5.0 20 30
188 ××2030 PD492030 3.7 260 4.9 20 30
189 ××2030 PD572030 3.7 280 5.7 20 30
190 ××2030 PD602030 3.7 310 6.0 20 30
191 ××2030 PD632030 3.7 330 6.3 20 30
192 ××2030 PD652030 3.7 335 6.5 20 30
193 ××2030 PD672030 3.7 360 6.7 20 30
194 ××2030 PD852030 3.7 450 8.5 20 30
195 ××2033 PD302033 3.7 150 3.0 20 33
196 ××2033 PD402033 3.7 210 4.0 20 33
197 ××2033 PD502033 3.7 300 5.0 20 33
198 ××2033 PD602033 3.7 410 6 21 34
199 ××2033 PD102033 3.7 620 10.2 20.5 33
200 ××2034 PD472034 3.7 270 4.7 20 34
201 ××2035 PD352035 3.7 70 3.5 20 35
202 ××2035 PD222035 3.7 105 2.2 20.5 35.5
203 ××2035 PD302035 3.7 160 3.0 20 35
204 ××2035 PD402035 3.7 200 4.0 20 35
205 ××2035 PD442035 3.7 260 4.4 20 35
206 ××2035 PD452035 3.7 280 4.5 20 35
207 ××2035 PD502035 3.7 300 5.0 20 35
208 ××2035 PD542035 3.7 320 5.4 20 35
209 ××2035 PD582035 3.7 360 5.8 20 35
210 ××2035 PD652035 3.7 380 6.5 20 35
211 ××2035 PD702035 3.7 450 7.0 20 35
212 ××2035 PD752035 3.7 500 7.5 20 35
213 ××2036 PD602036 3.7 370 6.0 20 36
214 ××2040 PD202040 3.7 100 2.0 20 40
215 ××2040 PD302040 3.7 190 3.0 20 40
216 ××2040 PD352040 3.7 240 3.5 20 40
217 ××2040 PD382040 3.7 250 3.8 20 40
218 ××2040 PD402040 3.7 260 4.0 20 40
219 ××2040 PD452040 3.7 300 4.5 20 40
220 ××2040 PD482040 3.7 350 4.8 20 40
221 ××2040 PD502040 3.7 380 5.0 20 40
222 ××2040 PD652040 3.7 450 6.5 20 40
223 ××2040 PD802040 3.7 580 8.0 20 40
224 ××2042 PD702042 3.7 540 7 20.5 42.5
225 ××2042 PD902042 3.7 750 9 20.5 42.5
226 ××2044 PD352044 3.7 280 3.45 20.3 44.5
227 ××2044 PD502044 3.7 420 5 20.5 44.5
228 ××2044 PD552044 3.7 470 5.3 20.5 44.5
229 ××2044 PD602044 3.7 500 6 20.5 44.5
230 ××2044 PD652044 3.7 500 6.5 20.5 44.5
231 ××2044 PD602044 3.7 550 6.2 20.5 44.5
232 ××2044 PD702044 3.7 600 7 20.5 44.5
233 ××2044 PD942044 3.7 800 9.4 20.5 44.8
234 ××2045 PD252045 3.7 160 2.5 20 45
235 ××2045 PD562045 3.7 450 5.6 20 45
236 ××2045 PD602045 3.7 500 6.0 20 45
237 ××2045 PD702045 3.7 600 7.0 20 45
238 ××2048 PD292048 3.7 210 2.9 20 48
239 ××2048 PD452048 3.7 400 4.5 20.5 48.5
240 ××2048 PD602048 3.7 530 6 20.5 48.5
241 ××2048 PD552048 3.7 550 5.5 20.5 48.5
242 ××2048 PD752048 3.7 670 7.5 20.5 49
243 ××2060 PD302060 3.7 320 3.0 20 60
244 ××2060 PD402060 3.7 440 4.0 20 60
245 ××2060 PD452060 3.7 500 4.5 20 60
246 ××2060 PD602060 3.7 770 6 20 60.5
247 ××2060 PD702060 3.7 800 6.95 20.3 60.5
248 ××2060 PD752060 3.7 900 7.5 20 60.5
249 ××2062 PD502062 3.7 570 5.0 20 62
250 ××2070 PD502070 3.7 800 5.0 20 70
251 ××2070 PD702070 3.7 800 7.0 20 70
252 ××2070 PD602070 3.7 850 6.0 20 70
253 ××2070 PD752070 3.7 980 7.5 20 70
254 ××2070 PD852070 3.7 1250 8.5 20 70
255 ××2074 PD352074 3.7 480 3.5 20.5 74.5
256 ××2080 PD822080 3.7 1300 8.2 20 80

3.7v Lithium polymer battery list with the battery width in range of 21mm~25mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××2120 PD402120 3.7 150 4.0 21 20
2 ××2142 PD522142 3.7 455 5.2 21 42
3 ××2145 PD292145 3.7 230 2.9 21 45
4 ××2195 PD742195 3.7 1500 7.4 21 95
5 ××22120 PD5822120 3.7 900 5.8 22 120
6 ××2223 PD382223 3.7 160 3.8 22 23
7 ××2223 PD412223 3.7 170 4.1 22 23
8 ××2223 PD502223 3.7 190 5.0 22 23
9 ××2225 PD302225 3.7 100 3.0 22 25
10 ××2225 PD482225 3.7 220 4.8 22 25
11 ××2225 PD572225 3.7 280 5.7 22.5 25.5
12 ××2230 PD332230 3.7 170 3.3 22 30
13 ××2232 PD302232 3.7 180 3.0 22 32
14 ××2236 PD502236 3.7 350 5.0 22 36
15 ××2236 PD702236 3.7 550 7.0 22 36
16 ××2236 PD802236 3.7 580 8.0 22 36
17 ××2238 PD482238 3.7 380 4.8 22 38
18 ××2238 PD552238 3.7 510 5.6 22.6 38
19 ××2238 PD752238 3.7 700 7.5 22 38
20 ××2240 PD302240 3.7 210 3.0 22 40
21 ××2240 PD482240 3.7 390 4.8 22 40
22 ××2240 PD602240 3.7 450 6.0 22 40
23 ××2240 PD772240 3.7 630 7.7 22 40
24 ××2244 PD392244 3.7 360 3.9 22 44
25 ××2245 PD752245 3.7 650 7.5 22 45
26 ××2245 PD822245 3.7 800 8.2 22 45
27 ××2245 PD102245 3.7 900 10 22 45
28 ××2246 PD482246 3.7 450 4.8 22 46
29 ××2246 PD602246 3.7 530 6.0 22 46
30 ××2248 PD282248 3.7 230 2.8 22 48
31 ××2248 PD302248 3.7 250 3.0 22 48
32 ××2248 PD332248 3.7 280 3.3 22 48
33 ××2248 PD402248 3.7 350 4.0 22 48
34 ××2248 PD492248 3.7 480 4.9 22 48
35 ××2248 PD502248 3.7 490 5.0 22 48
36 ××2248 PD522248 3.7 500 5.2 22 48
37 ××2248 PD532248 3.7 520 5.3 22 48
38 ××2248 PD602248 3.7 600 6.0 22 48
39 ××2248 PD902248 3.7 930 8.9 22.3 48.5
40 ××2249 PD742249 3.7 890 7.4 22 49
41 ××2250 PD122250 3.7 1000 12.0 22 50
42 ××2260 PD482260 3.7 600 4.85 22.5 60
43 ××2260 PD802260 3.7 1150 8 22.5 60
44 ××2260 PD952260 3.7 1350 9.5 22.5 60
45 ××2263 PD392263 3.7 500 3.9 22 63
46 ××2263 PD392263 3.7 500 3.9 22 63
47 ××2265 PD572265 3.7 700 5.7 22 65
48 ××2265 PD542265 3.7 750 5.4 22 65
49 ××2265 PD602265 3.7 750 6.0 22 65
50 ××2265 PD652265 3.7 950 6.5 22 65
51 ××2265 PD702265 3.7 1000 7.0 22 65
52 ××2272 PD442272 3.7 680 4.4 22 72
53 ××2281 PD552281 3.7 1180 5.5 22.8 81
54 ××2282 PD112282 3.7 2400 11 22.5 82.5
55 ××2294 PD502294 3.7 1000 5 22.5 95
56 ××2294 PD802294 3.7 1650 7.3 22.5 95
57 ××2323 PD302323 3.7 130 3.0 23 23
58 ××2323 PD402323 3.7 165 4.0 23 23
59 ××2324 PD502324 3.7 220 5.0 23 24
60 ××2328 PD472328 3.7 280 4.7 23.5 28.5
61 ××2328 PD642328 3.7 300 6.4 23.5 28.5
62 ××2330 PD552330 3.7 370 5.5 23 30.5
63 ××2330 PD672330 3.7 450 6.7 23 30.5
64 ××2331 PD482331 3.7 300 4.8 23.5 31.5
65 ××2331 PD962331 3.7 600 9.6 23.5 31.5
66 ××2332 PD272332 3.7 165 2.7 23.5 32.5
67 ××2332 PD422332 3.7 240 4 22.9 32
68 ××2332 PD402332 3.7 255 4.2 23.5 32.5
69 ××2332 PD442332 3.7 290 4.4 23.5 32
70 ××2332 PD662332 3.7 420 6.6 23.5 32.5
71 ××2332 PD952332 3.7 620 9.4 23.5 32.5
72 ××2333 PD302333 3.7 180 3.0 23 33
73 ××2333 PD422333 3.7 260 4.2 23 33
74 ××2335 PD242335 3.7 140 2.4 23 35
75 ××2335 PD252335 3.7 150 2.5 23 35
76 ××2335 PD352335 3.7 230 3.5 23.5 35.5
77 ××2338 PD612338 3.7 500 6.1 23 38
78 ××2339 PD322339 3.7 250 3.2 23.5 39
79 ××2340 PD422340 3.7 360 4.2 23 40
80 ××2343 PD262343 3.7 200 2.6 23 43
81 ××2345 PD412345 3.7 360 4.1 23 45
82 ××2347 PD802347 3.7 800 8.0 23 47
83 ××2352 PD102352 3.7 1100 10.0 23 52
84 ××2356 PD502356 3.7 620 5.0 23 56
85 ××2356 PD602356 3.7 720 6.0 23 56
86 ××2358 PD902358 3.7 1000 9.0 23 58
87 ××2362 PD562362 3.7 750 5.6 23 62
88 ××2366 PD292366 3.7 410 2.9 23 66
89 ××2370 PD302425 3.7 120 3 24.2 23.5
90 ××2372 PD402425 3.7 170 4 24.2 23.5
91 ××2375 PD252375 3.7 340 2.5 23 75
92 ××2380 PD302380 3.7 550 3.2 23.5 80.5
93 ××2424 PD302424 3.7 110 3.0 24 24
94 ××2424 PD402424 3.7 165 4.0 24 24
95 ××2425 PD402425 3.7 175 4 24.2 23.5
96 ××2425 PD602425 3.7 310 6.0 24 25
97 ××2427 PD402427 3.7 220 4 24 27
98 ××2428 PD362428 3.7 190 3.6 24.5 28.5
99 ××2428 PD302438 3.7 240 3.2 24.5 38.5
100 ××2428 PD402438 3.7 320 4 24.5 38.5
101 ××2430 PD182430 3.7 95 1.8 24 30
102 ××2430 PD302430 3.7 160 3.0 24 30
103 ××2430 PD452430 3.7 280 4.5 24 30
104 ××2430 PD502430 3.7 300 5.0 24 30
105 ××2438 PD302438 3.7 240 3.2 24.5 38.5
106 ××2438 PD402438 3.7 300 4 24 38
107 ××2438 PD402438 3.7 320 4 24.5 38.5
108 ××2438 PD522438 3.7 470 5.4 24.5 38.5
109 ××2438 PD562438 3.7 480 5.8 24.5 38.5
110 ××2439 PD302339 3.7 240 3.2 23.5 39.5
111 ××2439 PD422339 3.7 350 4.2 23.5 39.5
112 ××2439 PD502339 3.7 420 5.2 23.5 39.5
113 ××2439 PD562339 3.7 460 5.6 23.5 39.5
114 ××2439 PD602339 3.7 500 6 23.5 39.5
115 ××2439 PD702339 3.7 650 7 23.5 39.5
116 ××2439 PD882339 3.7 750 8.8 23.5 39.8
117 ××2442 PD442442 3.7 400 4.4 24 42
118 ××2444 PD752444 3.7 780 7.5 24 44
119 ××2444 PD802444 3.7 900 8.0 24 44
120 ××2445 PD302445 3.7 260 3.0 24 45
121 ××2445 PD372445 3.7 380 3.7 24 45
122 ××2447 PD402447 3.7 350 4.0 24 47
123 ××2447 PD352447 3.7 360 3.5 24 47
124 ××2447 PD382447 3.7 400 3.8 24 47
125 ××2447 PD552447 3.7 600 5.5 24 47
126 ××2447 PD602447 3.7 700 6.0 24 47
127 ××2447 PD652447 3.7 710 6.5 24 47
128 ××2447 PD692447 3.7 750 6.9 24 47
129 ××2470 PD302470 3.7 410 3.0 24 70
130 ××2523 PD652523 3.7 320 6.7 25.5 23
131 ××2525 PD302525 3.7 165 3.0 25 25
132 ××2525 PD352525 3.7 200 3.5 25 25
133 ××2525 PD362525 3.7 210 3.6 25 25
134 ××2525 PD392525 3.7 230 3.9 25 25
135 ××2525 PD402525 3.7 250 4.0 25 25
136 ××2525 PD602525 3.7 400 6.0 25 25
137 ××2525 PD652525 3.7 450 6.5 25 25
138 ××2526 PD492526 3.7 330 4.9 25 26
139 ××2527 PD582527 3.7 400 5.8 25 27
140 ××2528 PD382528 3.7 240 3.8 25.5 28.5
141 ××2530 PD192530 3.7 80 19.0 25 30
142 ××2530 PD302530 3.7 170 3.0 25 30
143 ××2530 PD322530 3.7 180 3.2 25 30
144 ××2530 PD362530 3.7 220 3.6 25 30
145 ××2530 PD402530 3.7 270 4.0 25 30
146 ××2530 PD452530 3.7 300 4.5 25 30
147 ××2530 PD502530 3.7 380 5.0 25 30
148 ××2530 PD592530 3.7 480 5.9 25 30
149 ××2530 PD902530 3.7 720 9.2 25.5 30.5
150 ××2532 PD402532 3.7 280 4.0 25 32
151 ××2532 PD652532 3.7 480 6.5 25 32
152 ××2532 PD702532 3.7 520 7.0 25 32
153 ××2532 PD802532 3.7 600 8.2 25.5 32.5
154 ××2533 PD302533 3.7 220 3.0 25 33
155 ××2533 PD412533 3.7 270 4.1 25 33
156 ××2533 PD552533 3.7 320 5.5 25 33
157 ××2533 PD622533 3.7 350 6.2 25 33
158 ××2534 PD342534 3.7 230 3.4 25 34
159 ××2534 PD482534 3.7 350 4.8 25 34
160 ××2535 PD212535 3.7 95 2.1 25 35
161 ××2535 PD222535 3.7 150 2.2 25 35
162 ××2536 PD302535 3.7 200 3.0 25 35
163 ××2537 PD332535 3.7 230 3.3 25 35
164 ××2537 PD702537 3.7 570 7.0 25 37
165 ××2538 PD382535 3.7 240 3.8 25 35
166 ××2538 PD902538 3.7 980 9 25 38
167 ××2539 PD402535 3.7 250 4.0 25 35
168 ××2539 PD752539 3.7 500 7.5 25 39
169 ××2539 PD112539 3.7 1000 11.0 25 39
170 ××2540 PD222540 3.7 150 2.2 25 40
171 ××2540 PD252540 3.7 200 2.5 25 40
172 ××2540 PD302540 3.7 240 3.0 25 40
173 ××2540 PD352540 3.7 260 3.5 25 40
174 ××2540 PD322540 3.7 270 3.2 25 40
175 ××2540 PD452535 3.7 300 4.5 25 35
176 ××2540 PD382540 3.7 320 3.8 25 40
177 ××2540 PD402540 3.7 380 4.0 25 40
178 ××2540 PD422540 3.7 420 4.2 25 40
179 ××2540 PD462540 3.7 490 5.2 25 40
180 ××2540 PD602540 3.7 570 6.0 25 40
181 ××2540 PD652540 3.7 670 7.0 25 40
182 ××2540 PD752540 3.7 800 7.5 25 40
183 ××2540 PD802540 3.7 850 8.2 25.5 42
184 ××2540 PD102540 3.7 1120 10.0 25 40
185 ××2541 PD502535 3.7 400 5.0 25 35
186 ××2542 PD522535 3.7 400 5.2 25 35
187 ××2542 PD522542 3.7 500 5.2 25 42
188 ××2543 PD802535 3.7 650 8.0 25 35
189 ××2544 PD102535 3.7 800 10.0 25 35
190 ××2548 PD302548 3.7 140 3.0 25 48
191 ××2548 PD502548 3.7 580 5 25.5 48.5
192 ××2550 PD702550 3.7 820 7 24.5 50
193 ××2550 PD852550 3.7 1000 8.5 25.5 50.5
194 ××2550 PD902550 3.7 1100 9 25.5 50.5
195 ××2550 PD932550 3.7 1200 9.3 25.5 50.5
196 ××2553 PD302553 3.7 300 3.0 25 53
197 ××2553 PD102553 3.7 1300 10.0 25 53
198 ××2560 PD292560 3.7 350 2.9 25 60
199 ××2560 PD402560 3.7 560 4.0 25 60
200 ××2560 PD872560 3.7 1830 8.7 25.7 61

3.7v Lithium polymer battery list with the battery width in range of 26mm~30mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××2624 PD222624 3.7 80 2.2 26 24
2 ××2626 PD302626 3.7 150 3.0 26 26
3 ××2626 PD352626 3.7 190 3.5 26 26
4 ××2628 PD232634 3.7 150 2.3 28.5 34.5
5 ××2628 PD402628 3.7 240 4 26.5 28.5
6 ××2628 PD512628 3.7 300 5.15 26 28.5
7 ××2629 PD342634 3.7 270 3.4 25.7 34.5
8 ××2632 PD352632 3.7 240 3.5 26 32
9 ××2632 PD672632 3.7 500 6.7 26.5 48.5
10 ××2634 PD452634 3.7 380 4.7 25.6 34
11 ××2634 PD632634 3.7 500 6.3 26.5 34
12 ××2637 PD502637 3.7 480 5 26.5 37.5
13 ××2637 PD652637 3.7 650 6.5 26.5 38
14 ××2638 PD582638 3.7 580 5.8 26.5 38.5
15 ××2638 PD602638 3.7 600 6 26.5 38
16 ××2642 PD102642 3.7 1100 10.0 26 42
17 ××2643 PD502643 3.7 450 5.0 26 43
18 ××2643 PD532643 3.7 600 5.3 26 43
19 ××2644 PD502644 3.7 530 5.0 26 44
20 ××2645 PD432645 3.7 480 4.3 26 45
21 ××2648 PD502648 3.7 580 5 26.5 48.5
22 ××2648 PD592648 3.7 715 5.9 26 48
23 ××2648 PD652648 3.7 800 6.5 26 48
24 ××2648 PD802648 3.7 1000 8.0 26 48
25 ××2649 PD402649 3.7 420 4.0 26 49
26 ××2650 PD672650 3.7 740 6.7 26 50
27 ××2650 PD602650 3.7 750 6.0 26 50
28 ××2655 PD202655 3.7 220 2.0 26 55
29 ××2655 PD222655 3.7 260 2.2 26 55
30 ××2657 PD222657 3.7 280 2.2 26 57
31 ××2666 PD402666 3.7 700 4.0 26 66
32 ××2699 PD602699 3.7 1350 6.0 26 99
33 ××2699 PD752699 3.7 1600 7.5 26 99
34 ××2718 PD462718 3.7 148 4.6 27 18
35 ××2726 PD422726 3.7 230 4.2 27 26
36 ××2728 PD582728 3.7 430 5.8 27.5 28.5
37 ××2729 PD402729 3.7 280 4.0 27 29
38 ××2729 PD452729 3.7 300 4.5 27 29
39 ××2729 PD502729 3.7 400 5.0 27 29
40 ××2729 PD582729 3.7 450 5.8 27 29
41 ××2729 PD722729 3.7 600 7.2 27 29
42 ××2730 PD402730 3.7 300 4 27.3 30.5
43 ××2730 PD502730 3.7 360 5 27.5 30.8
44 ××2730 PD602730 3.7 400 6 27.5 31
45 ××2730 PD702730 3.7 440 7 27 30
46 ××2732 PD422732 3.7 420 4.2 27.5 32.5
47 ××2734 PD252734 3.7 180 2.5 27 34
48 ××2735 PD252735 3.7 185 2.5 27 35
49 ××2735 PD452735 3.7 350 4.5 27 35
50 ××2737 PD952737 3.7 960 9.4 27.3 37.5
51 ××2740 PD282740 3.7 250 2.8 27 40
52 ××2740 PD382740 3.7 350 3.8 27.5 40.5
53 ××2742 PD402742 3.7 400 3.9 27.5 42.5
54 ××2742 PD752742 3.7 800 7.5 27.5 42.5
55 ××2742 PD932742 3.7 1000 9.3 27.5 42.5
56 ××2745 PD382745 3.7 450 3.75 26.8 45.5
57 ××2745 PD402745 3.7 480 4 27.5 45.5
58 ××2745 PD502745 3.7 600 5 27 45.5
59 ××2745 PD642745 3.7 800 6.4 27.0 45.8
60 ××2745 PD902745 3.7 1100 9 27 46
61 ××2746 PD602746 3.7 650 6.0 27 46
62 ××2749 PD502749 3.7 550 5.0 27 49
63 ××2749 PD702749 3.7 900 7.0 27 49
64 ××2749 PD762749 3.7 1000 7.6 27 49
65 ××2749 PD902749 3.7 1140 9.0 27 49
66 ××2754 PD802754 3.7 1200 8.0 27 54
67 ××2771 PD422771 3.7 850 4.2 27.5 70.5
68 ××2773 PD382773 3.7 700 3.8 27.5 73
69 ××2828 PD362828 3.7 240 3.6 28.5 28.5
70 ××2829 PD292829 3.7 170 2.9 28 29
71 ××2830 PD402830 3.7 300 4 28 30
72 ××2832 PD402832 3.7 300 4 28.5 32.5
73 ××2834 PD342834 3.7 275 3.4 28 34
74 ××2835 PD582835 3.7 530 6 28.5 35.5
75 ××2837 PD502837 3.7 480 5.0 28 37
76 ××2838 PD302838 3.7 280 3.0 28 38
77 ××2838 PD582838 3.7 600 5.8 28 38
78 ××2840 PD302840 3.7 280 3.0 28 40
79 ××2840 PD402840 3.7 400 4.0 28 40
80 ××2840 PD592840 3.7 600 5.9 28 40
81 ××2840 PD702840 3.7 710 7.0 28 40
82 ××2840 PD652840 3.7 720 6.5 28 40
83 ××2842 PD682842 3.7 750 6.8 28 42
84 ××2843 PD432843 3.7 450 4.3 28 43
85 ××2845 PD382845 3.7 430 3.8 28 45
86 ××2852 PD352852 3.7 460 3.5 28 52
87 ××2877 PD402877 3.7 900 4 28.5 77.5
88 ××2885 PD552885 3.7 1400 5.5 28 85
89 ××2894 PD652894 3.7 1650 6.5 28 94
90 ××2927 PD592927 3.7 370 5.9 29 27
91 ××2929 PD332929 3.7 300 3.3 29.5 29.5
92 ××2929 PD472929 3.7 400 4.7 29.5 29.5
93 ××2930 PD482930 3.7 400 4.8 29 30
94 ××2933 PD222933 3.7 140 2.2 29 33
95 ××2933 PD302933 3.7 240 3.0 29 33
96 ××2933 PD382933 3.7 270 3.8 29 33
97 ××2933 PD402933 3.7 320 4.0 29 33
98 ××2933 PD482933 3.7 420 4.8 29.5 33.5
99 ××2934 PD252934 3.7 180 2.5 29 34
100 ××2934 PD322934 3.7 280 3.2 29 34
101 ××2934 PD462934 3.7 400 4.6 29 34
102 ××2935 PD502935 3.7 480 5 29 35
103 ××2935 PD692935 3.7 650 7.1 29.5 35.5
104 ××2943 PD292943 3.7 320 2.9 29 43
105 ××2970 PD502970 3.7 1000 5.0 29 70
106 ××2996 PD632996 3.7 1350 6.3 29 96
107 ××2996 PD702996 3.7 1500 7.0 29 96
108 ××30130 PD3030130 3.7 900 3.0 30 130
109 ××30130 PD5230130 3.7 2000 5.2 30 130
110 ××30158 PD4030158 3.7 1800 4.0 30 158
111 ××30160 PD3230160 3.7 1500 3.2 30 160
112 ××30160 PD3530160 3.7 1750 3.5 30 160
113 ××30160 PD4030160 3.7 2100 4.0 30 160
114 ××3025 PD633025 3.7 450 6.3 30 25
115 ××3027 PD253027 3.7 150 2.5 30 27
116 ××3027 PD413027 3.7 240 4.1 30 27
117 ××3027 PD603027 3.7 400 6.0 30 27
118 ××3028 PD303028 3.7 200 3 30.5 28.5
119 ××3029 PD243029 3.7 160 2.4 30 29
120 ××3029 PD263029 3.7 180 2.6 30 29
121 ××3030 PD303030 3.7 220 3.0 30 30
122 ××3030 PD403030 3.7 320 4.0 30 30
123 ××3030 PD523030 3.7 400 5.2 30.5 30.5
124 ××3030 PD603030 3.7 520 6 30.5 30.5
125 ××3030 PD703030 3.7 550 7.0 30 30
126 ××3031 PD353031 3.7 240 3.5 30 31
127 ××3031 PD553031 3.7 600 5.5 30.5 31.5
128 ××3033 PD223033 3.7 150 2.3 30.5 33.5
129 ××3033 PD373033 3.7 300 3.7 30 33
130 ××3033 PD423033 3.7 360 4.2 30 33
131 ××3035 PD223035 3.7 160 2.2 30 35
132 ××3035 PD223035 3.7 180 2.2 30 35
133 ××3035 PD273035 3.7 240 2.7 30 35
134 ××3035 PD303035 3.7 270 3.0 30 35
135 ××3035 PD353035 3.7 320 3.5 30 35
136 ××3035 PD383035 3.7 320 3.8 30 35
137 ××3035 PD403035 3.7 380 4.0 30 35
138 ××3035 PD403035 3.7 390 4.0 30 35
139 ××3035 PD503035 3.7 450 5.0 30 35
140 ××3036 PD303036 3.7 285 3.0 30 36
141 ××3036 PD603036 3.7 700 6.15 29.8 36
142 ××3037 PD413037 3.7 380 4.1 30 37
143 ××3040 PD243040 3.7 230 2.4 30 40
144 ××3040 PD283040 3.7 280 2.8 30 40
145 ××3040 PD303040 3.7 330 3.0 30 40
146 ××3040 PD323040 3.7 340 3.2 30 40
147 ××3040 PD343040 3.7 350 3.4 30 40
148 ××3040 PD353040 3.7 380 3.5 30 40
149 ××3040 PD383040 3.7 420 3.8 30 40
150 ××3040 PD403040 3.7 420 4.0 30 40
151 ××3040 PD423040 3.7 460 4.2 30 40
152 ××3040 PD453040 3.7 500 4.5 30 40
153 ××3040 PD503040 3.7 550 5.0 30 40
154 ××3040 PD523040 3.7 570 5.2 30 40
155 ××3040 PD553040 3.7 580 5.5 30 40
156 ××3040 PD603040 3.7 670 6.0 30 40
157 ××3040 PD653040 3.7 770 6.5 30 40
158 ××3040 PD703040 3.7 800 7.0 30 40
159 ××3040 PD803040 3.7 900 8.0 30 40
160 ××3040 PD903040 3.7 1100 9.2 30.5 40.5
161 ××3040 PD103040 3.7 1200 10.0 30 40
162 ××3040 PD153040 3.7 1300 15.0 30 40
163 ××3042 PD603042 3.7 680 6.0 30 42
164 ××3043 PD403043 3.7 470 4.0 30 43
165 ××3044 PD503044 3.7 600 5.0 30 44
166 ××3045 PD293045 3.7 360 2.95 31 46
167 ××3045 PD453045 3.7 600 4.5 30 45
168 ××3045 PD653045 3.7 880 6.5 30 45
169 ××3045 PD743045 3.7 1020 7.4 30.5 45.8
170 ××3045 PD763045 3.7 1080 7.6 30.5 45.8
171 ××3045 PD803045 3.7 1150 8 30.5 45.8
172 ××3045 PD943045 3.7 1350 9.4 30.5 46
173 ××3045 PD103045 3.7 1400 10.2 30.3 45.8
174 ××3046 PD413046 3.7 490 4.1 30 46
175 ××3046 PD883046 3.7 1200 8.8 30 46
176 ××3046 PD903046 3.7 1300 9.0 30 46
177 ××3047 PD803047 3.7 1280 8.2 30.5 47.5
178 ××3048 PD123048 3.7 80 1.2 30 48
179 ××3048 PD133048 3.7 85 1.3 30 48
180 ××3048 PD243048 3.7 290 2.4 30 48
181 ××3048 PD233048 3.7 300 2.3 30 48
182 ××3048 PD253048 3.7 310 2.5 30 48
183 ××3048 PD283048 3.7 350 2.8 30 48
184 ××3048 PD303048 3.7 380 3.0 30 48
185 ××3048 PD353048 3.7 500 3.7 30.5 48.5
186 ××3048 PD403048 3.7 580 4 30.5 48.5
187 ××3048 PD453048 3.7 600 4.5 30.5 48.5
188 ××3048 PD483048 3.7 700 5 30.5 48.5
189 ××3048 PD503048 3.7 700 5 30.5 48.5
190 ××3048 PD603048 3.7 850 6.3 30.5 48.5
191 ××3048 PD803048 3.7 950 8 30.5 48.5
192 ××3048 PD703048 3.7 1020 7 30.5 48.5
193 ××3048 PD743048 3.7 1100 7.4 30.5 48.8
194 ××3048 PD753048 3.7 1100 7.4 29.5 48.8
195 ××3048 PD853048 3.7 1200 8.45 30.3 48.5
196 ××3048 PD953048 3.7 1400 9.5 30.5 48.5
197 ××3048 PD103048 3.7 1500 10 30.5 48.8
198 ××3049 PD433049 3.7 560 4.3 30.5 49
199 ××3050 PD503050 3.7 780 5.0 30 50
200 ××3050 PD523050 3.7 800 5.2 30 50
201 ××3050 PD883050 3.7 1250 8.85 30.5 50.5
202 ××3050 PD903050N 3.7 1550 9 30.5 51
203 ××3052 PD753052 3.7 950 7.5 30 52
204 ××3054 PD303054 3.7 475 3.0 30 54
205 ××3060 PD303060 3.7 400 3.0 30 60
206 ××3060 PD503060 3.7 900 5 30.5 60.5
207 ××3060 PD703060 3.7 1400 7 30.5 60.5
208 ××3060 PD903060 3.7 1750 9.2 30.5 60.5
209 ××3073 PD813073 3.7 1900 8.1 30 73
210 ××3080 PD303080 3.7 750 3.0 30 80
211 ××3080 PD783080 3.7 1300 7.8 30 80
212 ××3085 PD623085 3.7 1250 6.2 30 85
213 ××3090 PD363090 3.7 950 3.6 30 90
214 ××3090 PD503090 3.7 1000 5.0 30 90
215 ××3090 PD583090 3.7 1200 5.8 30 90
216 ××3090 PD703090 3.7 1300 7.0 30 90
217 ××3095 PD503095 3.7 1500 5.0 30 95
218 ××3099 PD403099 3.7 900 4.0 30 99
219 ××3099 PD453099 3.7 1000 4.5 30 99
220 ××3099 PD553099 3.7 1250 5.5 30 99
221 ××3099 PD653099 3.7 1600 6.5 30 99

3.7v Lithium polymer battery list with the battery width in range of 31mm~35mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××3133 PD503133 3.7 450 5.0 31 33
2 ××3135 PD503135 3.7 560 5 31.5 35.5
3 ××3155 PD223155 3.7 330 2.2 31 55
4 ××3155 PD353155 3.7 600 3.5 31 55
5 ××3155 PD453155 3.7 800 4.5 31 55
6 ××3169 PD253169 3.7 450 2.5 31 69
7 ××32100 PD6932100 3.7 2300 6.9 32 100
8 ××3232 PD803232 3.7 750 8.2 32.5 32.5
9 ××3242 PD303242 3.7 330 3.0 32 42
10 ××3242 PD503242 3.7 700 5.0 32 42
11 ××3242 PD643242 3.7 800 6.4 32 42
12 ××3242 PD803242 3.7 900 8.0 32 42
13 ××3248 PD263248 3.7 440 2.6 32.8 48.5
14 ××3248 PD653248 3.7 700 6.5 32 48
15 ××3248 PD503248 3.7 800 5.0 32 48
16 ××3250 PD323250 3.7 480 3 32 50
17 ××3255 PD363255 3.7 600 3.6 32 55
18 ××3255 PD553255 3.7 1000 5.5 32 55
19 ××3255 PD803255 3.7 1000 8.0 32 55
20 ××3262 PD403262 3.7 800 4.0 32 62
21 ××3278 PD223278 3.7 500 2.2 32 78
22 ××3281 PD403281 3.7 1250 4 32.5 81.5
23 ××3281 PD433281 3.7 1300 4.3 32.5 81.5
24 ××3334 PD343334 3.7 330 3.4 33 34
25 ××3335 PD403335 3.7 420 4.0 33 35
26 ××3335 PD503335 3.7 500 5.0 33 35
27 ××3336 PD533335 3.7 560 5.3 33 35
28 ××3343 PD243343 3.7 285 2.4 33 43
29 ××3347 PD523347 3.7 820 5.2 33 47
30 ××3348 PD653348 3.7 700 6.5 33 48
31 ××3348 PD683348 3.7 1000 6.8 33 48
32 ××3350 PD383350 3.7 620 3.8 33 50
33 ××3350 PD623350 3.7 820 6.2 33 50
34 ××3378 PD403378 3.7 1000 4.0 33 78
35 ××3396 PD523396 3.7 1500 5.2 33 96
36 ××3396 PD623396 3.7 1700 6.2 33 96
37 ××3396 PD803396 3.7 2000 8.0 33 96
38 ××3420 PD503420 3.7 120 5.0 34 20
39 ××3430 PD433430 3.7 410 4.3 34 30
40 ××3434 PD333434 3.7 345 3.3 34 34
41 ××3434 PD383434 3.7 400 3.8 34 34
42 ××3434 PD483434 3.7 450 4.8 34 34
43 ××3434 PD633434 3.7 700 6.3 34 34
44 ××3435 PD483435 3.7 460 4.8 34 35
45 ××3436 PD503436 3.7 500 5.0 34 36
46 ××3438 PD933438 3.7 1240 9.3 34 38
47 ××3440 PD303440 3.7 355 3.0 34 40
48 ××3440 PD343440 3.7 360 3.6 34.5 40.5
49 ××3440 PD353440 3.7 400 3.5 34 40
50 ××3440 PD403440 3.7 520 4.0 34 40
51 ××3440 PD433440 3.7 550 4.3 34 40
52 ××3440 PD723440 3.7 900 7.2 34 40
53 ××3442 PD253442 3.7 250 2.5 34 42
54 ××3442 PD293442 3.7 380 2.9 34 42
55 ××3442 PD303442 3.7 400 3 34.5 42.5
56 ××3442 PD383442 3.7 460 3.8 34 42
57 ××3442 PD403442 3.7 560 4.0 34 42
58 ××3442 PD443442 3.7 600 4.4 34 42
59 ××3442 PD473442 3.7 650 4.7 34 42
60 ××3442 PD553442 3.7 850 5.5 34.5 42.5
61 ××3442 PD583442 3.7 900 5.8 34 42
62 ××3442 PD603442 3.7 920 6.0 34 42
63 ××3442 PD653442 3.7 1000 6.5 34 42
64 ××3442 PD723442 3.7 1100 8.0 34 42
65 ××3442 PD923442 3.7 1350 9.2 34 42
66 ××3442 PD113442 3.7 1850 10.85 33.8 42
67 ××3443 PD303443 3.7 400 3.0 34 43
68 ××3443 PD293443 3.7 450 2.9 34 43
69 ××3443 PD393443 3.7 500 3.9 34 43
70 ××3443 PD603443 3.7 850 6.0 34 43
71 ××3443 PD643443 3.7 920 6.4 34 43
72 ××3443 PD753443 3.7 1150 7.5 34 43
73 ××3443 PD103443 3.7 1400 10.0 34 43
74 ××3444 PD603444 3.7 840 6.0 34 44
75 ××3444 PD653444 3.7 930 6.5 34 44
76 ××3445 PD363445 3.7 500 3.6 34 45
77 ××3446 PD333446 3.7 490 3.3 34 46
78 ××3446 PD403446 3.7 550 4.0 34 46
79 ××3446 PD433446 3.7 600 4.3 34 46
80 ××3446 PD463446 3.7 650 4.6 34 46
81 ××3446 PD483446 3.7 700 4.8 34 46
82 ××3446 PD503446 3.7 750 5.0 34 46
83 ××3446 PD533446 3.7 810 5.3 34 46
84 ××3446 PD593446 3.7 1000 5.9 34 46
85 ××3446 PD803446 3.7 1200 8.0 34 46
86 ××3446 PD923446 3.7 1430 9.2 34 46
87 ××3447 PD383447 3.7 400 3.8 34 47
88 ××3447 PD483447 3.7 700 4.8 34 47
89 ××3448 PD453448 3.7 740 4.5 34 48
90 ××3448 PD553448 3.7 800 5.5 34 48
91 ××3448 PD603448 3.7 850 6.0 34 48
92 ××3448 PD593448 3.7 980 5.9 34 48
93 ××3448 PD653448 3.7 1000 6.5 34 48
94 ××3448 PD703448 3.7 1050 7.0 34 48
95 ××3448 PD753448 3.7 1100 7.5 34 48
96 ××3448 PD773448 3.7 1300 7.7 34 48
97 ××3448 PD853448 3.7 1300 8.5 34 48
98 ××3448 PD103448 3.7 1650 10.0 34 48
99 ××3449 PD303449 3.7 440 3.0 34 49
100 ××3450 PD253450 3.7 350 2.5 34 50
101 ××3450 PD293450 3.7 450 2.9 34 50
102 ××3450 PD303450 3.7 480 3.0 34 50
103 ××3450 PD363450 3.7 500 3.6 34 50
104 ××3450 PD323450 3.7 520 3.2 34 50
105 ××3450 PD383450 3.7 620 3.8 34 50
106 ××3450 PD403450 3.7 680 4.0 34 50
107 ××3450 PD423450 3.7 705 4.2 34 50
108 ××3450 PD443450 3.7 800 4.4 34 50
109 ××3450 PD463450 3.7 800 4.6 34 50
110 ××3450 PD503450 3.7 840 5.0 34 50
111 ××3450 PD483450 3.7 850 4.8 34 50
112 ××3450 PD513450 3.7 850 5.1 34 50
113 ××3450 PD523450 3.7 870 5.2 34 50
114 ××3450 PD553450 3.7 960 5.5 34 50
115 ××3450 PD533450 3.7 1000 5.3 34 50
116 ××3450 PD603450 3.7 1000 6.0 34 50
117 ××3450 PD583450 3.7 1020 5.8 34 50
118 ××3450 PD593450 3.7 1050 5.9 34 50
119 ××3450 PD903450 3.7 1050 9.0 34 50
120 ××3450 PD703450 3.7 1200 7.0 34 50
121 ××3450 PD723450 3.7 1200 7.2 34 50
122 ××3450 PD753450 3.7 1300 7.5 34 50
123 ××3450 PD803450 3.7 1350 8.0 34 50
124 ××3450 PD843450 3.7 1400 8.4 34 50
125 ××3450 PD923450 3.7 1400 9.2 34 50
126 ××3450 PD963450 3.7 1450 9.6 34 50
127 ××3450 PD853450 3.7 1500 8.5 34 50
128 ××3450 PD863450 3.7 1500 8.6 34 50
129 ××3450 PD903450H 3.7 1500 9.0 34 50
130 ××3450 PD983450 3.7 1650 9.8 34 50
131 ××3450 PD103450 3.7 1800 10.0 34 50
132 ××3450 PD103450H 3.7 1900 10.0 34 50
133 ××3450 PD113450 3.7 2000 11.0 34 50
134 ××3450 PD103450SH 3.7 2050 10.0 34 50
135 ××3454 PD313454 3.7 500 3.1 34 54
136 ××3455 PD303455 3.7 560 3.0 34 55
137 ××3455 PD433455 3.7 800 4.3 34 55
138 ××3455 PD503455 3.7 970 5.0 34 55
139 ××3455 PD523455 3.7 1050 5.2 34 55
140 ××3456 PD363456 3.7 650 3.6 34 56
141 ××3458 PD283458 3.7 550 2.8 34 58
142 ××3458 PD503458 3.7 1000 5.0 34 58
143 ××3458 PD823458 3.7 1700 8.2 34 58
144 ××3458 PD123458 3.7 2300 12.0 34 58
145 ××3459 PD823459N 3.7 1750 8.2 34 59
146 ××3460 PD503460 3.7 1150 4.6 34 60
147 ××3462 PD683462 3.7 450 6.8 34 62
148 ××3462 PD353462 3.7 720 3.5 34 62
149 ××3462 PD483462 3.7 850 4.8 34 62
150 ××3463 PD103463 3.7 1950 10.0 34 63
151 ××3465 PD353465 3.7 900 3.5 34.5 65.5
152 ××3465 PD483465 3.7 920 4.8 34 65
153 ××3465 PD503465 3.7 1100 5.0 34 65
154 ××3465 PD603465 3.7 1200 6.0 34 65
155 ××3465 PD703465 3.7 1400 7.0 34 65
156 ××3465 PD113465 3.7 2900 11 34.5 65.5
157 ××3467 PD303467 3.7 710 3.0 34 67
158 ××3470 PD423470 3.7 950 4.2 34 70
159 ××3470 PD503470 3.7 1000 5.0 34 70
160 ××3472 PD493472 3.7 1300 4.9 34 72
161 ××3473 PD543473 3.7 1500 5.4 34 73
162 ××3475 PD303475 3.7 750 3.0 34 75
163 ××3475 PD323475 3.7 800 3.2 34 75
164 ××3475 PD353475 3.7 850 3.5 34 75
165 ××3475 PD403475 3.7 1000 4.0 34 75
166 ××3480 PD323480 3.7 880 3.2 34 80
167 ××3480 PD353480 3.7 950 3.5 34 80
168 ××3480 PD503480 3.7 1500 5.0 34 80
169 ××3480 PD553480 3.7 1700 5.5 34 80
170 ××3482 PD503482 3.7 1200 5.0 34 82
171 ××3485 PD453485 3.7 1350 4.5 34 85
172 ××3492 PD843492 3.7 1900 8.4 34 92
173 ××3492 PD853492 3.7 2600 8.5 34 92
174 ××3495 PD433495 3.7 1550 4.3 34 95
175 ××3496 PD553496 3.7 2000 5.5 34 96
176 ××3496 PD583496 3.7 2000 5.8 34 96
177 ××35130 PD4035130 3.7 1800 4.0 35 130
178 ××35135 PD3835135 3.7 1500 3.8 35 135
179 ××35146 PD7835146 3.7 4000 7.8 35 146
180 ××3529 PD603529 3.7 600 6.0 35 29
181 ××3535 PD183535 3.7 150 1.8 35 35
182 ××3535 PD223535 3.7 170 2.2 35 35
183 ××3535 PD303535 3.7 320 3.0 35 35
184 ××3535 PD323535 3.7 350 3.2 35 35
185 ××3535 PD383535 3.7 400 3.8 35.5 35.5
186 ××3535 PD903535 3.7 1000 9.0 35 35
187 ××3542 PD303542 3.7 380 3.0 35 42
188 ××3543 PD953543 3.7 1400 9.5 35 43
189 ××3545 PD253545 3.7 250 2.5 35 45
190 ××3545 PD303545 3.7 350 3.0 35 45
191 ××3545 PD323545 3.7 380 3.2 35 45
192 ××3545 PD353545 3.7 400 3.5 35 45
193 ××3545 PD653545 3.7 550 6.5 35 45
194 ××3545 PD703545 3.7 650 7 35 45
195 ××3545 PD803545 3.7 1100 8.0 35 45
196 ××3550 PD253550 3.7 350 2.5 35 50
197 ××3550 PD433550 3.7 820 4.3 35.5 50.5
198 ××3553 PD803553 3.7 1830 8 35 53
199 ××3554 PD303554 3.7 530 3.0 35 54
200 ××3554 PD313554 3.7 600 3.1 35 54
201 ××3554 PD323554 3.7 640 3.2 35 54
202 ××3555 PD653555 3.7 1300 6.5 35 55
203 ××3555 PD703555 3.7 1300 7.0 35 55
204 ××3556 PD433556 3.7 800 4.3 35 56
205 ××3558 PD203558 3.7 300 2.0 35 58
206 ××3558 PD333558 3.7 600 3.3 35 58
207 ××3560 PD523560N 3.7 1180 5.2 35.5 60.5
208 ××3562 PD283562 3.7 530 2.8 35 62
209 ××3562 PD383562 3.7 800 3.8 35 62
210 ××3562 PD373562 3.7 850 3.7 35 62
211 ××3562 PD653562 3.7 1000 6.5 35 62
212 ××3562 PD503562 3.7 1100 5.0 35 62
213 ××3562 PD753562 3.7 1200 7.5 35 62
214 ××3562 PD583562 3.7 1300 5.8 35 62
215 ××3562 PD903562 3.7 1350 9.0 35 62
216 ××3562 PD903562H 3.7 1900 9.0 35 62
217 ××3562 PD943562 3.7 2000 9.4 35 62
218 ××3565 PD303565 3.7 680 3.0 35 65
219 ××3580 PD303580 3.7 800 3.0 35 80
220 ××3580 PD483580 3.7 1450 4.8 35 80
221 ××3580 PD503580 3.7 1500 5.0 35 80
222 ××3583 PD683583 3.7 2300 6.8 35 83
223 ××3595 PD503595 3.7 1600 5.0 35 95

3.7v Lithium polymer battery list with the battery width in range of 36mm~40mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××36100 PD7036100 3.7 2400 7.0 36 100
2 ××3638 PD303638 3.7 370 3.0 36 38
3 ××3638 PD103638 3.7 1630 10 36 38
4 ××3641 PD383641 3.7 550 3.8 36 41
5 ××3643 PD333643 3.7 460 3.3 36 43
6 ××3646 PD503646 3.7 850 5.0 36 46
7 ××3648 PD283648 3.7 400 2.8 36 48
8 ××3648 PD403648 3.7 750 4.0 36 48
9 ××3651 PD303651 3.7 550 3.0 36 51
10 ××3652 PD313652 3.7 550 3.1 36 52
11 ××3654 PD503654 3.7 1000 5.0 36 54
12 ××3657 PD413657 3.7 820 4.1 36 57
13 ××3663 PD303663 3.7 700 3.0 36 63
14 ××3670 PD503670 3.7 1350 5.0 36 70
15 ××3670 PD683670 3.7 1800 6.8 36 70
16 ××36720 PD253672 3.7 600 2.5 36.5 72.5
17 ××3696 PD353696 3.7 1200 3.5 36 96
18 ××3696 PD553696 3.7 1650 5.5 36 96
19 ××37102 PD6037102 3.7 2560 6.0 37 102
20 ××37128 PD5037128 3.7 2450 5.0 37 128
21 ××3738 PD353738 3.7 470 3.5 37 38
22 ××3740 PD573740 3.7 850 5.7 37 40
23 ××3743 PD373743 3.7 600 3.7 37 43
24 ××3745 PD363745 3.7 550 3.6 37 45
25 ××3745 PD403745 3.7 630 4.0 37 45
26 ××3746 PD403746 3.7 650 4.0 37 46
27 ××3746 PD483746 3.7 850 4.8 37 46
28 ××3748 PD803748 3.7 1000 8.0 37 48
29 ××3748 PD853748 3.7 1700 8.5 37 48
30 ××3749 PD553749 3.7 1080 5.5 37 49
31 ××3750 PD203750 3.7 300 2.0 37 50
32 ××3751 PD693751 3.7 1400 6.9 37 51
33 ××3753 PD303753 3.7 550 3.0 37 53
34 ××3754 PD413754 3.7 840 4.1 37 54
35 ××3755 PD723755 3.7 1450 7.2 37 55
36 ××3755 PD843755 3.7 1750 8.4 37 55
37 ××3755 PD883755 3.7 1800 8.8 37 55
38 ××3755 PD113755 3.7 2400 11.0 37 55
39 ××3755 PD123755 3.7 2500 12.0 37 55
40 ××3758 PD503758 3.7 1000 5.0 37 58
41 ××3758 PD683758 3.7 1600 6.8 37 58
42 ××3758 PD843758 3.7 1800 8.4 37 58
43 ××3758 PD863758 3.7 1900 8.6 37 58
44 ××3759 PD203759 3.7 450 2.0 37 59
45 ××3759 PD303759 3.7 700 3 37.5 59.5
46 ××3759 PD363759 3.7 830 3.6 37.5 59.5
47 ××3759 PD403759 3.7 850 4 37.5 59.5
48 ××3759 PD503759 3.7 1200 5.1 37.5 59.5
49 ××3759 PD523759 3.7 1220 5.2 37.5 59.5
50 ××3759 PD533759 3.7 1250 5.3 37.5 59.5
51 ××3759 PD543759 3.7 1300 5.2 37.3 59.5
52 ××3759 PD553759 3.7 1350 5.5 37.5 59.5
53 ××3759 PD583759 3.7 1400 6 37.5 59.5
54 ××3759 PD603759 3.7 1500 6.4 37.5 59.8
55 ××3759 PD623759 3.7 1500 6.2 37.5 59.8
56 ××3759 PD783759 3.7 1800 7.8 37.5 60.5
57 ××3759 PD903759 3.7 2200 9.2 37.5 59.5
58 ××3759 PD953759 3.7 2200 9.7 37.5 59.5
59 ××3759 PD103759 3.7 2400 10.0 37 59
60 ××3762 PD353762 3.7 800 3.5 37 62
61 ××3765 PD423765 3.7 1050 4.2 37 65
62 ××3765 PD463765 3.7 1300 4.6 37 65
63 ××3766 PD413766 3.7 1000 4.1 37 66
64 ××3766 PD633766 3.7 1300 6.3 37 66
65 ××3770 PD633770 3.7 1600 6.3 37 70
66 ××3777 PD433777 3.7 1300 4.3 37 77
67 ××3820 PD253820 3.7 130 2.5 38 20
68 ××3830 PD553830 3.7 660 5.5 38 30
69 ××3840 PD303840 3.7 380 3.0 38 40
70 ××3840 PD323840 3.7 440 3.2 38 40
71 ××3848 PD303848 3.7 500 3 38.5 48.5
72 ××3848 PD593848 3.7 1050 5.9 38 48
73 ××3848 PD573848 3.7 1080 5.7 38 48
74 ××3860 PD523860 3.7 1400 5.2 38 60
75 ××3860 PD113860 3.7 3000 11.0 38 60
76 ××3861 PD313861 3.7 750 3.1 38 61
77 ××3864 PD113864 3.7 3500 11.3 38 64
78 ××3866 PD303866 3.7 750 3.0 38 66
79 ××3867 PD953867 3.7 2700 9.5 38 67
80 ××3870 PD903870 3.7 2450 9.0 38 70
81 ××3870 PD103870 3.7 3000 10.0 38 70
82 ××3871 PD553871 3.7 1350 5.5 38 71
83 ××3872 PD503872 3.7 1400 5.0 38 72
84 ××3879 PD503879 3.7 1500 5.0 38 79
85 ××3879 PD553879 3.7 1700 5.5 38 79
86 ××3937 PD503937 3.7 670 5.0 39 37
87 ××3943 PD543943 3.7 1000 5.4 39 43
88 ××3945 PD503945 3.7 850 5.0 39 45
89 ××3945 PD523945 3.7 900 5.2 39 45
90 ××3946 PD453946 3.7 850 4.5 39 46
91 ××3947 PD373947 3.7 820 3.7 39 47
92 ××3949 PD383949 3.7 735 3.8 39 49
93 ××3950 PD853950 3.7 1500 8.5 39 50
94 ××3954 PD303954 3.7 570 3.0 39 54
95 ××3965 PD303965 3.7 800 3.0 39 65
96 ××3966 PD603966 3.7 1100 6.0 39 66
97 ××3966 PD683966 3.7 1950 6.8 39 66
98 ××3966 PD113966 3.7 3000 11.0 39 66
99 ××3969 PD623969 3.7 1800 6.2 39 69
100 ××3974 PD303974 3.7 850 3.0 39 74
101 ××3978 PD253978 3.7 700 2.5 39 78
102 ××3982 PD403982 3.7 1440 4 39.5 82
103 ××40100 PD5040100 3.7 2200 5.0 40 100
104 ××40105 PD4740105 3.7 1800 4.7 40 105
105 ××40105 PD6040105 3.7 2200 6.0 40 105
106 ××4037 PD274037 3.7 320 2.7 40 37
107 ××4039 PD254039 3.7 345 2.5 40 39
108 ××4039 PD334039 3.7 470 3.3 40 39
109 ××4039 PD414039 3.7 600 4.1 40 39
110 ××4039 PD494039 3.7 700 4.9 40 39
111 ××4039 PD554039 3.7 800 5.5 40 39
112 ××4039 PD584039 3.7 850 5.8 40 39
113 ××4040 PD264040 3.7 330 2.6 40 40
114 ××4040 PD284040 3.7 390 2.8 40 40
115 ××4040 PD304040 3.7 430 3.0 40 40
116 ××4040 PD384040 3.7 590 3.8 40 40
117 ××4040 PD404040 3.7 600 4.0 40 40
118 ××4040 PD454040 3.7 720 4.5 40 40
119 ××4041 PD304041 3.7 460 3.0 40 41
120 ××4044 PD384044 3.7 550 3.8 40 44
121 ××4044 PD404044 3.7 650 4 40 44
122 ××4044 PD504044 3.7 800 5 40 44
123 ××4045 PD284045 3.7 465 2.8 40 45
124 ××4045 PD304045 3.7 480 3.0 40 45
125 ××4045 PD344045 3.7 560 3.4 40 45
126 ××4045 PD384045 3.7 640 3.8 40 45
127 ××4045 PD504045 3.7 800 5.0 40 45
128 ××4045 PD554045 3.7 1000 5.5 40 45
129 ××4048 PD464048 3.7 900 4.6 40 48
130 ××4048 PD604048 3.7 1000 6.0 40 48
131 ××4048 PD694048 3.7 1200 6.9 40 48
132 ××4048 PD734048 3.7 1450 7.3 40 48
133 ××4050 PD264050 3.7 600 2.6 40 50
134 ××4050 PD284050 3.7 650 2.8 40 50
135 ××4050 PD304050 3.7 700 3.0 40 50
136 ××4050 PD354050 3.7 750 3.5 40 50
137 ××4050 PD384050 3.7 800 3.8 40 50
138 ××4050 PD404050H 3.7 840 4.0 40 50
139 ××4050 PD504050 3.7 1000 5.0 40 50
140 ××4050 PD854050 3.7 1400 8.5 40 50
141 ××4050 PD754050 3.7 1700 7.5 40 50
142 ××4050 PD834050H 3.7 1700 8.3 40 50
143 ××4050 PD804050 3.7 1850 8.0 40 50
144 ××4050 PD114050 3.7 2200 11.0 40 50
145 ××4053 PD304053 3.7 630 3.0 40 53
146 ××4057 PD384057 3.7 850 3.8 40 57
147 ××4059 PD354059 3.7 890 3.5 40 59
148 ××4059 PD624059 3.7 1500 6.2 40 59
149 ××4060 PD354060 3.7 800 3.5 40 60
150 ××4060 PD444060 3.7 1100 4.4 40 60
151 ××4060 PD504060 3.7 1250 5.0 40 60
152 ××4060 PD554060 3.7 1350 5.5 40 60
153 ××4060 PD604060 3.7 1400 6 40.5 60.5
154 ××4060 PD644060 3.7 1550 6.4 40 60
155 ××4060 PD724060 3.7 1700 7.2 40 60
156 ××4060 PD934060 3.7 2200 9.3 40 60
157 ××4067 PD734067 3.7 1400 7.3 40 67
158 ××4070 PD344070 3.7 1050 3.4 40 70
159 ××4070 PD354070 3.7 1050 3.5 40 70
160 ××4070 PD454070 3.7 1400 4.5 40 70
161 ××4070 PD504070 3.7 1500 5.0 40 70
162 ××4072 PD654072 3.7 2650 6.5 40 72
163 ××4072 PD824072 3.7 2700 8.2 40 72
164 ××4074 PD504074 3.7 1600 5.0 40 74
165 ××4082 PD644082 3.7 2400 6.4 40 82
166 ××4083 PD344083 3.7 1100 3.4 40 83
167 ××4085 PD384085 3.7 1300 3.8 40 85
168 ××4085 PD504085 3.7 1850 5.0 40 85

3.7v Lithium polymer battery list with the battery width in range of 41mm~50mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××36100 PD7036100 3.7 2400 7.0 36 100
2 ××3638 PD303638 3.7 370 3.0 36 38
3 ××3638 PD103638 3.7 1630 10 36 38
4 ××3641 PD383641 3.7 550 3.8 36 41
5 ××3643 PD333643 3.7 460 3.3 36 43
6 ××3646 PD503646 3.7 850 5.0 36 46
7 ××3648 PD283648 3.7 400 2.8 36 48
8 ××3648 PD403648 3.7 750 4.0 36 48
9 ××3651 PD303651 3.7 550 3.0 36 51
10 ××3652 PD313652 3.7 550 3.1 36 52
11 ××3654 PD503654 3.7 1000 5.0 36 54
12 ××3657 PD413657 3.7 820 4.1 36 57
13 ××3663 PD303663 3.7 700 3.0 36 63
14 ××3670 PD503670 3.7 1350 5.0 36 70
15 ××3670 PD683670 3.7 1800 6.8 36 70
16 ××36720 PD253672 3.7 600 2.5 36.5 72.5
17 ××3696 PD353696 3.7 1200 3.5 36 96
18 ××3696 PD553696 3.7 1650 5.5 36 96
19 ××37102 PD6037102 3.7 2560 6.0 37 102
20 ××37128 PD5037128 3.7 2450 5.0 37 128
21 ××3738 PD353738 3.7 470 3.5 37 38
22 ××3740 PD573740 3.7 850 5.7 37 40
23 ××3743 PD373743 3.7 600 3.7 37 43
24 ××3745 PD363745 3.7 550 3.6 37 45
25 ××3745 PD403745 3.7 630 4.0 37 45
26 ××3746 PD403746 3.7 650 4.0 37 46
27 ××3746 PD483746 3.7 850 4.8 37 46
28 ××3748 PD803748 3.7 1000 8.0 37 48
29 ××3748 PD853748 3.7 1700 8.5 37 48
30 ××3749 PD553749 3.7 1080 5.5 37 49
31 ××3750 PD203750 3.7 300 2.0 37 50
32 ××3751 PD693751 3.7 1400 6.9 37 51
33 ××3753 PD303753 3.7 550 3.0 37 53
34 ××3754 PD413754 3.7 840 4.1 37 54
35 ××3755 PD723755 3.7 1450 7.2 37 55
36 ××3755 PD843755 3.7 1750 8.4 37 55
37 ××3755 PD883755 3.7 1800 8.8 37 55
38 ××3755 PD113755 3.7 2400 11.0 37 55
39 ××3755 PD123755 3.7 2500 12.0 37 55
40 ××3758 PD503758 3.7 1000 5.0 37 58
41 ××3758 PD683758 3.7 1600 6.8 37 58
42 ××3758 PD843758 3.7 1800 8.4 37 58
43 ××3758 PD863758 3.7 1900 8.6 37 58
44 ××3759 PD203759 3.7 450 2.0 37 59
45 ××3759 PD303759 3.7 700 3 37.5 59.5
46 ××3759 PD363759 3.7 830 3.6 37.5 59.5
47 ××3759 PD403759 3.7 850 4 37.5 59.5
48 ××3759 PD503759 3.7 1200 5.1 37.5 59.5
49 ××3759 PD523759 3.7 1220 5.2 37.5 59.5
50 ××3759 PD533759 3.7 1250 5.3 37.5 59.5
51 ××3759 PD543759 3.7 1300 5.2 37.3 59.5
52 ××3759 PD553759 3.7 1350 5.5 37.5 59.5
53 ××3759 PD583759 3.7 1400 6 37.5 59.5
54 ××3759 PD603759 3.7 1500 6.4 37.5 59.8
55 ××3759 PD623759 3.7 1500 6.2 37.5 59.8
56 ××3759 PD783759 3.7 1800 7.8 37.5 60.5
57 ××3759 PD903759 3.7 2200 9.2 37.5 59.5
58 ××3759 PD953759 3.7 2200 9.7 37.5 59.5
59 ××3759 PD103759 3.7 2400 10.0 37 59
60 ××3762 PD353762 3.7 800 3.5 37 62
61 ××3765 PD423765 3.7 1050 4.2 37 65
62 ××3765 PD463765 3.7 1300 4.6 37 65
63 ××3766 PD413766 3.7 1000 4.1 37 66
64 ××3766 PD633766 3.7 1300 6.3 37 66
65 ××3770 PD633770 3.7 1600 6.3 37 70
66 ××3777 PD433777 3.7 1300 4.3 37 77
67 ××3820 PD253820 3.7 130 2.5 38 20
68 ××3830 PD553830 3.7 660 5.5 38 30
69 ××3840 PD303840 3.7 380 3.0 38 40
70 ××3840 PD323840 3.7 440 3.2 38 40
71 ××3848 PD303848 3.7 500 3 38.5 48.5
72 ××3848 PD593848 3.7 1050 5.9 38 48
73 ××3848 PD573848 3.7 1080 5.7 38 48
74 ××3860 PD523860 3.7 1400 5.2 38 60
75 ××3860 PD113860 3.7 3000 11.0 38 60
76 ××3861 PD313861 3.7 750 3.1 38 61
77 ××3864 PD113864 3.7 3500 11.3 38 64
78 ××3866 PD303866 3.7 750 3.0 38 66
79 ××3867 PD953867 3.7 2700 9.5 38 67
80 ××3870 PD903870 3.7 2450 9.0 38 70
81 ××3870 PD103870 3.7 3000 10.0 38 70
82 ××3871 PD553871 3.7 1350 5.5 38 71
83 ××3872 PD503872 3.7 1400 5.0 38 72
84 ××3879 PD503879 3.7 1500 5.0 38 79
85 ××3879 PD553879 3.7 1700 5.5 38 79
86 ××3937 PD503937 3.7 670 5.0 39 37
87 ××3943 PD543943 3.7 1000 5.4 39 43
88 ××3945 PD503945 3.7 850 5.0 39 45
89 ××3945 PD523945 3.7 900 5.2 39 45
90 ××3946 PD453946 3.7 850 4.5 39 46
91 ××3947 PD373947 3.7 820 3.7 39 47
92 ××3949 PD383949 3.7 735 3.8 39 49
93 ××3950 PD853950 3.7 1500 8.5 39 50
94 ××3954 PD303954 3.7 570 3.0 39 54
95 ××3965 PD303965 3.7 800 3.0 39 65
96 ××3966 PD603966 3.7 1100 6.0 39 66
97 ××3966 PD683966 3.7 1950 6.8 39 66
98 ××3966 PD113966 3.7 3000 11.0 39 66
99 ××3969 PD623969 3.7 1800 6.2 39 69
100 ××3974 PD303974 3.7 850 3.0 39 74
101 ××3978 PD253978 3.7 700 2.5 39 78
102 ××3982 PD403982 3.7 1440 4 39.5 82
103 ××40100 PD5040100 3.7 2200 5.0 40 100
104 ××40105 PD4740105 3.7 1800 4.7 40 105
105 ××40105 PD6040105 3.7 2200 6.0 40 105
106 ××4037 PD274037 3.7 320 2.7 40 37
107 ××4039 PD254039 3.7 345 2.5 40 39
108 ××4039 PD334039 3.7 470 3.3 40 39
109 ××4039 PD414039 3.7 600 4.1 40 39
110 ××4039 PD494039 3.7 700 4.9 40 39
111 ××4039 PD554039 3.7 800 5.5 40 39
112 ××4039 PD584039 3.7 850 5.8 40 39
113 ××4040 PD264040 3.7 330 2.6 40 40
114 ××4040 PD284040 3.7 390 2.8 40 40
115 ××4040 PD304040 3.7 430 3.0 40 40
116 ××4040 PD384040 3.7 590 3.8 40 40
117 ××4040 PD404040 3.7 600 4.0 40 40
118 ××4040 PD454040 3.7 720 4.5 40 40
119 ××4041 PD304041 3.7 460 3.0 40 41
120 ××4044 PD384044 3.7 550 3.8 40 44
121 ××4044 PD404044 3.7 650 4 40 44
122 ××4044 PD504044 3.7 800 5 40 44
123 ××4045 PD284045 3.7 465 2.8 40 45
124 ××4045 PD304045 3.7 480 3.0 40 45
125 ××4045 PD344045 3.7 560 3.4 40 45
126 ××4045 PD384045 3.7 640 3.8 40 45
127 ××4045 PD504045 3.7 800 5.0 40 45
128 ××4045 PD554045 3.7 1000 5.5 40 45
129 ××4048 PD464048 3.7 900 4.6 40 48
130 ××4048 PD604048 3.7 1000 6.0 40 48
131 ××4048 PD694048 3.7 1200 6.9 40 48
132 ××4048 PD734048 3.7 1450 7.3 40 48
133 ××4050 PD264050 3.7 600 2.6 40 50
134 ××4050 PD284050 3.7 650 2.8 40 50
135 ××4050 PD304050 3.7 700 3.0 40 50
136 ××4050 PD354050 3.7 750 3.5 40 50
137 ××4050 PD384050 3.7 800 3.8 40 50
138 ××4050 PD404050H 3.7 840 4.0 40 50
139 ××4050 PD504050 3.7 1000 5.0 40 50
140 ××4050 PD854050 3.7 1400 8.5 40 50
141 ××4050 PD754050 3.7 1700 7.5 40 50
142 ××4050 PD834050H 3.7 1700 8.3 40 50
143 ××4050 PD804050 3.7 1850 8.0 40 50
144 ××4050 PD114050 3.7 2200 11.0 40 50
145 ××4053 PD304053 3.7 630 3.0 40 53
146 ××4057 PD384057 3.7 850 3.8 40 57
147 ××4059 PD354059 3.7 890 3.5 40 59
148 ××4059 PD624059 3.7 1500 6.2 40 59
149 ××4060 PD354060 3.7 800 3.5 40 60
150 ××4060 PD444060 3.7 1100 4.4 40 60
151 ××4060 PD504060 3.7 1250 5.0 40 60
152 ××4060 PD554060 3.7 1350 5.5 40 60
153 ××4060 PD604060 3.7 1400 6 40.5 60.5
154 ××4060 PD644060 3.7 1550 6.4 40 60
155 ××4060 PD724060 3.7 1700 7.2 40 60
156 ××4060 PD934060 3.7 2200 9.3 40 60
157 ××4067 PD734067 3.7 1400 7.3 40 67
158 ××4070 PD344070 3.7 1050 3.4 40 70
159 ××4070 PD354070 3.7 1050 3.5 40 70
160 ××4070 PD454070 3.7 1400 4.5 40 70
161 ××4070 PD504070 3.7 1500 5.0 40 70
162 ××4072 PD654072 3.7 2650 6.5 40 72
163 ××4072 PD824072 3.7 2700 8.2 40 72
164 ××4074 PD504074 3.7 1600 5.0 40 74
165 ××4082 PD644082 3.7 2400 6.4 40 82
166 ××4083 PD344083 3.7 1100 3.4 40 83
167 ××4085 PD384085 3.7 1300 3.8 40 85
168 ××4085 PD504085 3.7 1850 5.0 40 85

3.7v Lithium polymer battery list with the battery width in range of 51mm~60mm.

Back to width menu

Item Series Part No. Nominal Voltage (V) Nominal Capacity (mAh) Thickness(mm)  Width      (mm) Length      (mm)
1 ××5143 PD505143 3.7 1100 5.0 51 43
2 ××5143 PD525143 3.7 1200 5.2 51 43
3 ××5143 PD555143 3.7 1290 5.5 51 43
4 ××5151 PD525151 3.7 1400 5.2 51 51
5 ××5152 PD375152 3.7 950 3.7 51 52
6 ××5152 PD395152 3.7 1000 3.9 51 52
7 ××5152 PD405152 3.7 1050 4.0 51 52
8 ××5152 PD505152 3.7 1350 5.0 51 52
9 ××5152 PD555152 3.7 1450 5.5 51 52
10 ××5152 PD605152 3.7 1500 6.0 51 52
11 ××5152 PD655152 3.7 1700 6.5 51 52
12 ××5152 PD825152 3.7 1900 8.2 51 52
13 ××5165 PD355165 3.7 1250 3.5 51 65
14 ××5165 PD385165 3.7 1300 3.8 51 65
15 ××5165 PD405165 3.7 1400 4.0 51 65
16 ××5165 PD425165 3.7 1470 4.2 51 65
17 ××5165 PD505165 3.7 1800 5.0 51 65
18 ××5165 PD785165 3.7 2800 7.8 51 65
19 ××5183 PD435183 3.7 1900 4.3 51 83
20 ××5190 PD355190 3.7 1770 3.5 51 90
21 ××5190 PD455190 3.7 2000 4.5 51 90
22 ××52100 PD5552100 3.7 2700 5.5 52 100
23 ××5245 PD725245 3.7 1700 7.2 52 45
24 ××5263 PD905263 3.7 3300 9.0 52 63
25 ××5274 PD575274 3.7 3100 5.7 52.2 74.5
26 ××5279 PD655279 3.7 3000 6.5 52 79
27 ××5279 PD705279 3.7 3100 7.0 52 79
28 ××5280 PD305280 3.7 1200 3.0 52 80
29 ××5280 PD335280 3.7 1400 3.3 52 80
30 ××5281 PD405280 3.7 1750 4.0 52 80
31 ××5282 PD415280 3.7 1900 4.1 52 80
32 ××5283 PD425280 3.7 1800 4.2 52 80
33 ××5284 PD505280 3.7 2200 5.0 52 80
34 ××53115 PD4553115 3.7 3000 4.5 53 115
35 ××5355 PD855355 3.7 2800 8.5 53 55
36 ××5355 PD135355 3.7 4200 13.0 53 55
37 ××5356 PD805356 3.7 2600 8 53 56
38 ××5357 PD475357 3.7 1500 4.7 53 57
39 ××5362 PD265362 3.7 870 2.6 53 62
40 ××53652 PD395365 3.7 1500 3.9 53 65
41 ××5369 PD445369 3.7 1750 4.4 53 69
42 ××5457 PD225457 3.7 650 2.2 54 57
43 ××5462 PD525462 3.7 2040 5.2 53.9 62
44 ××5468 PD255468 3.7 850 2.5 54 68
45 ××5468 PD355468 3.7 1300 3.5 54 68
46 ××5472 PD395472 3.7 1600 3.9 54 72
47 ××5483 PD405483 3.7 2000 4.0 54 83
48 ××5483 PD515483 3.7 2600 5.1 54 83
49 ××55100 PD5055100 3.7 2400 5.0 55 100
50 ××55100 PD7055100 3.7 3200 7.0 55 100
51 ××5555 PD505555 3.7 1550 5.0 55 55
52 ××5560 PD755560 3.7 2700 7.5 55 60
53 ××5566 PD265566 3.7 920 2.6 55 66
54 ××5568 PD555568 3.7 2300 5.5 55 68
55 ××5570 PD285570 3.7 1100 2.8 55 70
56 ××5570 PD355570 3.7 1200 3.5 55 70
57 ××5570 PD455570 3.7 1800 4.5 55 70
58 ××5570 PD555570 3.7 2200 5.5 55 70
59 ××5572 PD295572 3.7 1480 2.9 55 72
60 ××5575 PD405575 3.7 1600 4.0 55 75
61 ××5575 PD505575 3.7 2200 5.0 55 75
62 ××5585 PD405585 3.7 2000 4.0 55 85
63 ××5585 PD465585 3.7 2300 4.6 55 85
64 ××5589 PD265589 3.7 1200 2.6 55 89
65 ××5590 PD315590 3.7 1100 3.1 55 90
66 ××5590 PD375590 3.7 1600 3.7 55 90
67 ××5590 PD405590 3.7 1800 4.0 55 90
68 ××5590 PD505590 3.7 2000 5.0 55 90
69 ××5590 PD425590 3.7 2200 4.2 55 90
70 ××5590 PD475590 3.7 2500 4.7 55 90
71 ××5590 PD545590 3.7 3000 5.4 55 90
72 ××56142 PD6056142 3.7 5200 6.0 56 142
73 ××5669 PD705669 3.7 2000 7.0 56 69
74 ××5671 PD405671 3.7 1700 4.0 56 71
75 ××5689 PD385689 3.7 1800 3.8 56 89
76 ××5689 PD555689 3.7 3200 5.5 56 89
77 ××5757 PD395757 3.7 1260 3.9 57 57
78 ××5757 PD455757 3.7 1380 4.5 57 57
79 ××5757 PD495757 3.7 1500 4.9 57 57
80 ××5757 PD545757 3.7 1600 5.4 57 57
81 ××5757 PD585757 3.7 1650 5.8 57 57
82 ××5757 PD605757 3.7 1700 6.0 57 57
83 ××5764 PD435764 3.7 1600 4.3 57 64
84 ××58100 PD6058100 3.7 3600 6.0 58 100
85 ××58112 PD2558112 3.7 1550 2.5 58 112
86 ××58113 PD3058113 3.7 2000 3.0 58 113
87 ××58113 PD4058113 3.7 2500 4.0 58 113
88 ××5878 PD255878 3.7 1120 2.5 58 78
89 ××5878 PD405878 3.7 1900 4.0 58 78
90 ××5878 PD605878 3.7 3100 6.0 58 78
91 ××5961 PD535961 3.7 2550 5.3 59.5 61
92 ××5968 PD355968 3.7 1400 3.5 59 68
93 ××5968 PD375968 3.7 1400 3.7 59 68
94 ××5968 PD415968 3.7 1700 4.1 59 68
95 ××60113 PD4060113 3.7 2900 4.0 60 113
96 ××6065 PD356065 3.7 1400 3.5 60 65
97 ××6065 PD426065 3.7 1800 4.2 60 65
98 ××6065 PD456065 3.7 2000 4.5 60 65
99 ××6065 PD606065 3.7 2400 6.0 60 65
100 ××6066 PD306066 3.7 1010 3.0 60 66
101 ××6066 PD356066 3.7 1050 3.5 60 66
102 ××6066 PD406066 3.7 1250 4.0 60 66
103 ××6066 PD416066H 3.7 1500 4.1 60 66
104 ××6066 PD506066 3.7 1550 5.0 60 66
105 ××6066 PD366066H 3.7 1600 3.6 60 66
106 ××6066 PD456066H 3.7 2000 4.5 60 66
107 ××6066 PD546066H 3.7 2300 5.4 60 66
108 ××6069 PD356069 3.7 1400 3.5 60 69
109 ××6069 PD386069 3.7 1500 3.8 60 69
110 ××6069 PD506069 3.7 2200 5.0 60 69
111 ××6070 PD356070 3.7 1500 3.5 60 70
112 ××6072 PD586072 3.7 2700 5.8 60 72
113 ××6074 PD296074 3.7 1200 2.9 60 74
114 ××6076 PD336076 3.7 1400 3.3 60 76
115 ××6090 PD266090 3.7 1400 2.6 60 90
116 ××6090 PD286090 3.7 1400 2.8 60 90
117 ××6096 PD806096 3.7 5400 8.0 60 96
118 ××6097 PD856097 3.7 5500 8.5 60 97
119 ××6162 PD546162 3.7 2550 5.4 61 62
120 ××6180 PD296180 3.7 1380 2.9 61 80
121 ××6180 PD326180 3.7 1500 3.2 61 80
122 ××6180 PD406180 3.7 1900 4.0 61 80
123 ××62115 PD5062115 3.7 3000 5.0 62 115
124 ××6263 PD456263 3.7 1950 4.5 62 63
125 ××6271 PD286271 3.7 1200 2.8 62 71
126 ××6275 PD466275 3.7 2150 4.6 62 75
127 ××6275 PD926275 3.7 4300 9.2 62 75
128 ××6285 PD326285 3.7 1750 3.2 62 85
129 ××6285 PD426285 3.7 2400 4.2 62 85
130 ××6373 PD456373 3.7 2200 4.5 63 73
131 ××6381 PD356381 3.7 1800 3.5 63 81
132 ××6390 PD266390 3.7 1400 2.6 63 90
133 ××6490 PD516490 3.7 3200 5.1 64 90
134 ××6598 PD296598 3.7 1800 2.9 65 98
135 ××6670 PD606670 3.7 2800 6.0 66 70
136 ××6670 PD636670 3.7 2800 6.3 66 70
137 ××6672 PD306672 3.7 1460 3.0 66 72
138 ××67100 PD3067100 3.7 2200 3.0 67 100
139 ××67100 PD6067100 3.7 4200 6.0 67 100
140 ××67100 PD6767100H 3.7 5000 6.7 67 100
141 ××67113 PD6667113 3.7 4800 6.6 67 113
142 ××6770 PD416770 3.7 2000 4.1 67 70
143 ××6781 PD416781 3.7 2450 4.1 67 81
144 ××6868 PD806868 3.7 4000 8.0 68 68
145 ××6896 PD486896 3.7 3600 4.8 68 96
146 ××69114 PD4069114 3.7 3200 4.0 69 114
147 ××69114 PD5069114 3.7 4200 5.0 69 114
148 ××6987 PD576987 3.7 4700 5.7 69.7 87.5
149 ××6998 PD386998 3.7 2800 3.8 69 98
150 ××70100 PD4070100 3.7 2900 4.0 70 100
151 ××70150 PD6070150 3.7 5000 6.0 70 150
152 ××70160 PD8070160 3.7 11000 8.0 70 160
153 ××70160 PD8570160 3.7 12000 8.5 70 160
154 ××70240 PD8070240 3.7 10000 8.0 70 240
155 ××70270 PD5670270 3.7 10000 5.6 70 270
156 ××7070 PD507070 3.7 2600 5.0 70 70
157 ××7080 PD407080 3.7 2400 4.0 70 80
158 ××7175 PD347175 3.7 2000 3.4 71 75
159 ××7175 PD407175 3.7 2050 4.0 71 75
160 ××7274 PD427274 3.7 2300 4.2 72 74
161 ××7274 PD447274 3.7 2500 4.4 72 74
162 ××7288 PD707288 3.7 6100 7.2 72 88
163 ××73135 PD4273135 3.7 4400 4.2 73 135
164 ××7373 PD457373 3.7 2450 4.5 73 73
165 ××76100 PD5076100 3.7 4400 5.0 76 100
166 ××7660 PD317660 3.7 1450 3.1 76 60
167 ××7988 PD387988 3.7 2800 3.8 79 88
168 ××80100 PD2280100 3.7 1500 2.2 80 100
169 ××80118 PD7580118 3.7 8000 7.5 80 118
170 ××8398 PD478398 3.7 4300 4.7 83 98
171 ××8454 PD428454 3.7 1800 4.2 84 54
172 ××8454 PD478454 3.7 2000 4.7 84 54
173 ××8454 PD508454 3.7 2200 5.0 84 54
174 ××8590 PD408590 3.7 3200 4.0 85 90
175 ××99130 PD4099130 3.7 6000 4.0 99 130

5- FAQ

  •  Q: What does the model name mean in these 3.7v lithium polymer battery lists?

A: Generally a lithium polymer battery model name consists of four parts, the brand name, the battery thickness, width and then length. For example, PD103450, PD means Padre Electronics battery brand, 10 is 10mm thick, 34 is 34mm wide, 50 is 50mm long. However, for some special LiPo batteries, there will be an additional information added after the length. For example.PD105060D, means low temperature type PD105060 lithium polymer battery, “H2~H60”means 20C~60C high rate battery.

  • Q: Are these dimensions final size of Li-Polymer battery?

A: These dimensions is only the single battery cell size, PCM (protection circuit module) is not included. After adding the PCM onto the lithium polymer battery cell, the final battery pack will be longer by 2mm maximum. For example, there is a model PD303040 in above list for 30mm wide batteries, its dimension is 3*30*40mm, after adding PCM, it’s dimension becomes 3*30*42 maximum.

  • Q: How will the PCM affect thickness of the final 3.7v Lithium polymer battery pack?

A: This depends. If the Li-polymer battery cell is thicker than 3.5mm, then you can ignore the affects, but If it is less than 3.5mm, adding a PCM can always possibly make the battery pack thicker than the original battery cell, the main difference is the header place where we put the PCM. No matter how thin is the lithium polymer battery cell, so long as you add the PCM on it, it will have max thickness of 3.5mm.

  • Q: Are these lithium polymer battery list all of what you have?

A: No. First of all, we develop lots of new battery models now and then, however, they may not appear on the list before we update the contents. Secondly, with the same molding/tooling, we can create many new models easily if we need. So, the above 3.7v lithium polymer battery list is still part of what we have and what we can do.

  • Q: Can you make 2S, 3S, 4S, 6S battery packs with these lithium polymer battery 3.7v cells?

A: Sure. With these 3.7v polymer battery cells, we can make custom LiPo battery packs of different configurations, such as 7.4v 11.1v, 14.8v, 22.2v, 25.9v and so on.

  • Q: Do you offer datasheets of the lithium polymer battery cells or packs?

A: Yes. As soon as we agreed on the battery solution with clients, we can prepare and send the battery datasheet for their approval and confirmation, it’s always a step before an order is placed.

  • Q: Do you retail these lithium polymer batteries?

A: In case we have the same battery in stock, and customer is willing to pay transport cost, we can help on this. But we don’t recommend end consumers to buy from us for personal use purpose, after all, it is very expensive to ship one pcs battery or two between different countries.

  • Q: What’s your MOQ for manufacturing these 3.7v lithium polymer batteries?

A: For 10mAh~4000mAh LiPo battery, our regular MOQ for mass production is 5k pcs, but we can support trial order quantity such as 2k pcs, 3k pcs before mass production.

  • Q: Is there any guaranty time for your lithium polymer battery listed above?

A: Yes. Our guaranty time is one year after delivery. So long as we confirm it’s our problem in manufacturing, we will take responsibility of replacing new ones. If it’s caused by incorrect use or abuse, we will not be liable.

Previous:
Next:
Inquiry Now!
  • * CAPTCHA: Please select the Plane
