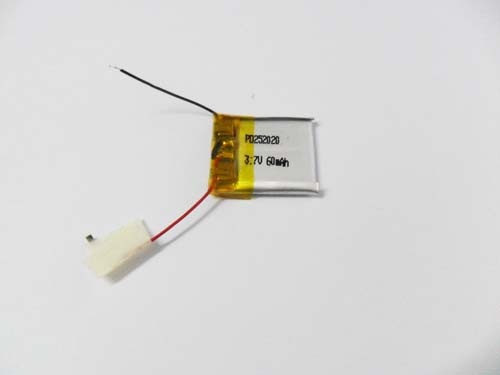

3.7V Lithium polymer battery 60mAh small and thin PD252020

3.7V Lithium polymer battery 60mAh small and thin PD252020

Short Description:

Small Lithium polymer battery/LiPo battery
3.7v 60mAh
PD252020
Rechargeable lithium battery with PCM
Applications: small wearable devices or medical monitoring device with connection to bluetooth.

Description

Small and thin 3.7v rechargeable battery from lithium polymer battery manufacturer

  • Model: PD252020+PCM+cables
  • Capacity: 60mah
  • Voltage; 3.7V
  • Thickness: 2.5mm
  • Width: 20.0±0.1mm
  • Height: 22.0mm max
  • Weight: about 1.0 g
  • Recommend charging current: 0.2C
  • Standard charging current:  0.5C
  • Recommend discharge current: 0.2C
  • Standard discharge current: 0.5C
  • Fast discharge current: 1C
  • Peak discharge current: 2C
  • Cable and connectors: standard,recommended or customized are available.
  • PCB/PCM: Japanese IC
  • Over-charge voltage: 4.25V±0.05V
  • Over discharge voltage : 3.0V±0.1V
  • Over curernt: 120mA(2.7V~4.25V)customized
  • Short-circiut protection: Yes.

Note: Website listed models are small part of what we can do, we can make almost all regular sizes and specs according to customer needs, you just need to come to our sales for a battery solution for you. remember you are requiring instead of only choosing.

For other small lipo batteries here.

For more models click here,

If you can’t find the right model for your application, please do contact Padre sales,they will recommend you the best one , you can send inquiry with your requirements in the form at bottom of this page, or email to [email protected], you will get reply very soon.
