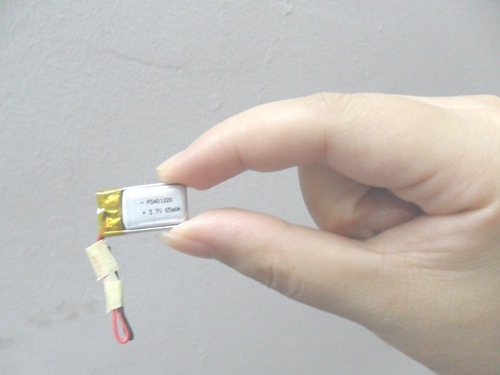

Ultra small lipo battery 3.7V 65mAh PD401220

Ultra small lipo battery 3.7V 65mAh PD401220

Short Description:

3.7V 80mAh tiny lithium polymer battery PD501221 with small size,this small lipo battery weights only 2.5g.


Ultra small lipo battery of custom lithium polymer battery

Model: PD401220
Thickness: 4.0mm
Height:20.0±0.5mm, if with PCM 22mm.
Weight: about 2.0g
Recommend charging current: 0.2C
Standard charging current: 0.5C
Cable and connectors:standard,recommended or customized are available.
Over-charge voltage 4.25V±0.05V
Over discharge voltage :2.7V±0.1V or 3.0V±0.1V Over curernt: 200mA(2.7V~4.25V)customized

For more models click here, if you don’t find the right model for your application, please do contact Padre sales,they will recommend you the best one among  more than 3000 models now, you can send inquiry with your requirements at below, and you will get reply very soon.
