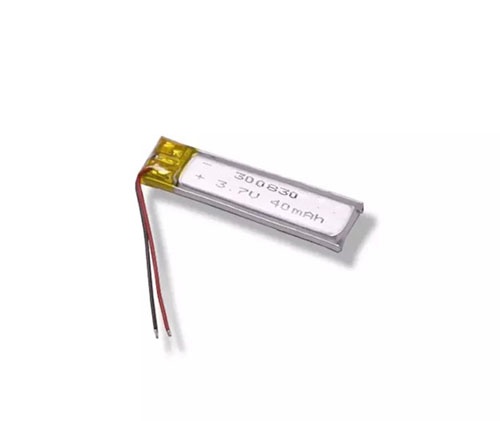

8mm ultra narrow lipo battery 3.7V 40mAh

8mm ultra narrow lipo battery 3.7V 40mAh

Short Description:

Lithium polymer battery as narrow as 8 mm, one of the smallest width, capacity 40mAh.

Description

Narrow type 3.7V lithium polymer battery(lipo battery pack)
Model:PD300830
Capacity:40mah
Voltage;3.7V
Thickness:3.5±0.2mm
Width:8.0±0.2mm
Height:32.0±0.5mm
Weight: about 1.0g
Recommend charging current: 0.2C
Standard charging current: 0.5C
Cable and connectors:standard,recommended or customized are available.
PCB/PCM:
Over-charge voltage 4.25V±0.05V
Over discharge voltage :2.7V±0.1V or 3.0V±0.1V
Over curernt: 80mA(2.7V~4.25V)customized

If you don’t find the right model for your application, please do contact Padre sales,they will recommend you the best one among  more than 3000 models now, you can send inquiry with your requirements at below, and you will get reply very soon.
