Large polymer battery cell model list

Short Description:

Large lithium polymer battery cells(li-polymer/lipo battery cells with capacity of 4Ah ~ 50Ah),They can meet high capacity demand from many products that requires big capacity and high power,or requires super long work time.

Description

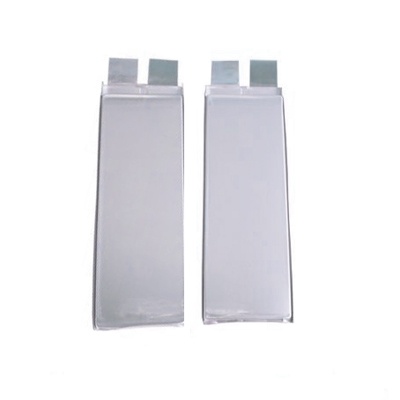

Large lithium polymer battery cells list

Advantages:

1- Very light weight

2- Very small size

3- High capacity with super long battery life

4- Safe and environmental friendly

5- Low self discharge rate less than 1% per month

6- Easy,simple and convenient to use without memory effects.

Item No.	Model			Nominal Capacity mAh	Dimension/mm			Impidence mΩ	Weight g
Item No.	Model			Nominal Capacity mAh	Thickness	Width	Length	Impidence mΩ	Weight g
1	50	90	92	4000	≤5.1	90.0±0.50	≤92	15	90
2	60	45	135	4000	≤6.20	45.0±0.5	≤136.5	10	84
3	48	48	166	4000	≤4.90	48.0±0.50	≤168.0	10	87
4	64	52	122	4000	≤6.5	52.0±0.5	≤121.5	10	87
5	57	45	135	4000	≤5.80	45.0±0.50	≤136.5	15	77
6	97	47	75	4000	≤9.80	47.5±0.50	≤77.5	15	75
7	84	50	82	4000	≤8.4	50.0±0.5	≤82.0	15	79
8	80	50	85	4000	≤8.10	50±0.50	≤87.0	15	76
9	94	51	77	4000	≤9.50	51.0±0.5	≤78.5	20	77
10	74	55	85	4000	≤7.50	55.0±0.50	≤86.5	15	78
11	90	61	66	4000	≤9.0	61.8±0.50	≤68.5	15	78
12	74	64	69	4000	≤7.50	64.0±0.5	≤71.0	20	74
13	77	70	68	4000	≤7.80	69.5±0.50	≤69.5	15	78
14	57	70	89	4000	≤5.80	70.0±0.50	≤90.0	20	79
15	36	88	120	4000	≤3.6	88.0±0.50	≤121.0	15	82
16	97	47	74	4000	≤10.20	47±0.50	≤75	20	76.0
17	77	47	92	4000	≤7.80	47±0.50	≤93.00	20	76.0
18	60	47	125	4000	≤6.10	46.8±0.50	≤126.5	20	81.0
19	50	50	140	4000	≤5.20	50.0±0.50	≤141.00	20	80.0
20	54	58	113	4000	≤5.50	58.0±0.50	≤113.5	20	80.0
21	40	59	156	4000	≤4.00	59.0±0.50	≤157.0	20	82.0
22	64	61	93	4000	≤6.50	61.0±0.5	≤94.50	20	80
23	74	64	69	4000	≤7.50	64.0±0.5	≤71.0	20	74
24	97	51	72	4100	≤9.9	51.0±0.50	≤74.50	20	80
25	94	58	90	4200	≤9.60	58.0±0.5	≤92.5	15	108
26	80	70	76	4200	≤8.20	70.0±0.5	≤79.0	15	91
27	94	40	96	4200	≤9.50	40.0±0.50	≤97.0	20	78
28	50	50	140	4200	≤5.20	50.0±0.50	≤141.0	15	82
29	37	88	120	4200	≤3.80	88.0±0.50	≤121.5	10	84
30	87	58	90	4200	≤8.80	58.0±0.5	≤91.0	15	94
31	54	50	140	4200	≤5.50	50.0±0.50	≤141.0	20	84.0
32	57	67	100	4250	≤5.70	67.0±0.50	≤101.0	15	83
33	84	54	82	4300	≤8.5	54.0±0.5	≤83.5	25	83.0
34	54	54	132	4400	≤5.5	54.0±0.50	≤133.0	15	86
35	84	63	108	4500	≤8.2	63.0±0.5	≤108.0	15	119.0
36	70	50	100	4500	≤7.10	50.0±0.50	≤102.0	12	83
37	72	70	76	4500	≤7.20	70.0±0.50	≤78.0	20	86
38	70	45	130	4500	≤7.20	45.0±0.5	≤130.5	20	90
39	52	50	150	4500	≤5.20	50.0±0.50	≤151.00	20	86.0
40	87	70	68	4500	≤8.80	69.5±0.50	≤69.50	20	88.0
41	60	67	100	4600	≤6.10	67.0±0.50	≤101.0	10	88
42	90	50	85	4600	≤9.20	50.0±0.5	≤87.0	20	85
43	70	61	93	4650	≤7.2	61.0±0.5	≤95.0	25	89
44	60	58	113	4700	≤6.10	58.0±0.50	≤114.0	15	89
45	64	58	113	4700	≤6.50	58.0±0.50	≤114.0	20	95.0
46	77	70	76	4800	≤8.00	70.0±0.50	≤77.50	25	94.0
47	60	49	134	4900	≤6.10	49.3±0.50	≤134.5	20	93
48	54	50	150	4900	≤5.40	50.0±0.50	≤151.00	20	95.0
49	74	50	117	4950	≤7.50	50.0±0.5	≤118.5	20	94
50	90	64	75	4950	≤9.10	63.7±0.50	≤75.5	15	94.0
51	74	40	165	5000	≤7.50	40.0±0.5	≤165.5	10	107
52	64	59	156	5000	≤6.5	59±0.50	≤158.50	10	131
53	87	45	135	5000	≤8.70	45.0±0.50	≤137.0	8	115.0
54	67	50	150	5000	≤6.90	50.0±0.50	≤152.00	8	114.0
55	87	41	120	5000	≤8.80	41.0±0.50	≤122.5	15	96
56	65	63	100	5000	≤6.6	62.5±0.5	≤100.0	15	95
57	67	63	100	5000	≤6.6	62.5±0.50	≤100.0	15	94
58	64	63	108	5000	≤6.40	63.0±0.50	≤108.0	12	95
59	90	64	75	5000	≤9.10	63.7±0.50	≤75.0	15	95
60	67	67	100	5000	≤6.70	67.0±0.50	≤101.5	15	98
61	57	50	150	5000	≤5.70	50.0±0.50	≤151.00	20	94.0
62	64	63	108	5000	≤6.40	63±0.50	≤108.0	12	96
63	90	64	74	5000	≤9.00	64±0.50	≤75.50	15	97.0
64	90	70	68	5000	≤9.10	69.5±0.50	≤69.50	15	98.0
65	94	70	70	5000	≤9.40	70.0±0.50	≤72.00	20	100.0
66	50	77	123	5000	≤5.10	77.0±0.5	≤123.0	15	101
67	44	88	120	5000	≤4.50	87.5±0.50	≤120.50	20	102.0
68	78	45	135	5100	≤7.9	45.5±0.5	≤137.0	10	102
69	77	45	135	5100	≤7.90	45.0±0.50	≤137.0	10	105
70	60	59	156	5200	≤6.10	59.5±0.5	≤158.50	8	118
71	90	41	120	5200	≤9.10	41.0±0.50	≤122.0	20	99
72	97	52	90	5200	≤9.80	52.0±0.50	≤90.5	20	98
73	100	52	90	5200	≤10.0	52.0±0.5	≤90.5	20	102.0
74	65	67	100	5200	≤6.5	67.0±0.5	≤101.0	20	97
75	54	88	130	5300	≤5.40	88.0±0.5	≤130.5	8	127
76	57	77	146	5500	≤5.8	77.0±0.5	≤146.0	10	130
77	60	88	120	5500	≤6.0	88.0±0.5	≤122.5	10	135
78	77	45	135	5500	≤7.80	45.0±0.5	≤137.0	10	105
79	70	50	140	5500	≤7.1	50.0±0.5	≤141.5	10	105
80	70	50	140	5500	≤7.0	50.0±0.50	≤141.0	20	110
81	44	67	156	5500	≤4.50	67±0.50	≤157	15	107.0
82	45	67	156	5500	≤4.60	67±0.5	≤157.0	10	108
83	99	64	77	5700	≤9.9	64±0.5	≤79.5	15	107.0
84	77	67	100	5700	≤7.80	67.0±0.50	≤101.50	15	112.0
85	50	80	156	6000	≤5.10	80.0±0.50	≤156.5	8	133
86	57	63	203	6000	≤5.8	63.0±0.5	≤203.5	8	162
87	40	89	182	6000	≤4.2	89.0±0.5	≤184.0	10	163.0
88	50	88	120	6000	≤5.10	88.0±0.50	≤121.0	10	119
89	90	47	125	6000	≤9.10	47.0±0.50	≤127.5	20	126.0
90	57	59	156	6000	≤5.90	59±0.50	≤158.50	10	118.0
91	54	63	203	6300	≤5.4	63.5±0.5	≤203.5	8	144
92	60	98	93	6300	≤6.1	98±0.50	≤93	15	124.0
93	70	48	166	6400	≤7.0	48±0.50	≤168.0	8	122
94	74	48	166	6400	≤7.50	48.0±0.50	≤167.5	15	132.0
95	64	65	160	6500	≤6.5	65.0±0.5	≤160.0	8	140
96	60	70	171	6500	≤6.0	70.0±0.5	≤172.0	8	153
97	80	67	100	6500	≤8.10	67.0±0.50	≤102.00	10	122
98	84	67	100	6500	≤8.5	67.0±0.5	≤102.0	10	124
99	60	67	140	6500	≤6.10	67.0±0.50	≤141.5	10	128
100	54	88	120	6500	≤5.5	88±0.5	≤121.50	15	129.0
101	54	89	182	7000	≤5.5	89.0±0.5	≤184.0	8	188.0
102	50	122	140	7000	≤5.10	123±0.50	≤140.50	10	186
103	67	77	146	7000	≤6.8	77.0±0.5	≤146.0	8	158
104	90	58	113	7000	≤9.10	58.0±0.50	≤115.0	10	130
105	40	104	160	7000	≤4.00	100.5±0.50	≤162	15	143.0
106	90	67	100	7300	≤9.10	67.0±0.50	≤102.5	10	136
107	68	65	156	7400	≤6.90	65.0±0.50	≤157.0	8	157
108	50	89	182	7400	≤5.10	89.0±0.5	≤184.0	8	177
109	50	100	130	7500	≤5.00	99.5±0.50	≤130	8	144
110	70	55	168	7500	≤7.20	55.0±0.5	≤168.0	15	148.0
111	48	55	271	7600	≤4.9	55.5±0.5	≤271.0	8	160
112	54	90	140	7650	≤5.30	90.0±0.5	≤141.0	10	151
113	54	90	140	7650	≤5.30	90.0±0.50	≤141.0	10	150
114	74	65	160	7800	≤7.4	65.0±0.50	≤160	8	163
115	74	77	123	7800	≤7.50	77±0.50	≤123.5	10	153.0
116	60	89	182	8000	≤6.0	89.0±0.5	≤184.0	8	215.0
117	70	100	130	8000	≤7.20	100.0±0.5	≤133.0	8	208
118	70	90	140	8000	≤7.1	90±0.50	≤142.0	8	195
119	64	90	160	8000	≤6.5	90.5±0.50	≤162.5	6	202
120	43	103	202	8000	≤4.4	103.0±0.50	≤203.5	5	195
121	84	67	156	8000	≤8.5	67.5±0.5	≤159.5	8	182
122	70	88	120	8000	≤7.20	88.0±0.50	≤122.5	5	170
123	80	59	156	8000	≤8.0	59.5±0.50	≤158.5	10	157
124	100	63	108	8000	≤10.0	63.5±0.50	≤112.0	10	148
125	74	67	140	8000	≤7.50	67.0±0.50	≤142.0	8	155
126	54	100	130	8000	≤5.5	100.0±0.5	≤130.0	8	158
127	84	90	95	8000	≤8.40	90±0.5	≤94.5	10	155.0
128	50	90	160	8000	≤5.1	90.0±0.5	≤162.0	8	160
129	67	92	110	8000	≤7.00	92.0±0.50	≤111.00	15	159.0
130	74	77	146	8200	≤7.50	77.0±0.50	≤146.0	8	178
131	80	65	156	8300	≤8.10	65.0±0.50	≤157.0	8	175
132	67	83	143	8300	≤6.80	83.5±0.50	≤142.0	6	171
133	70	90	140	8400	≤7.10	90.5±0.5	≤142.0	6	189
134	70	63	203	8500	≤7.1	63.5±0.5	≤203.5	6	195
135	57	89	182	8500	≤5.80	89.0±0.5	≤184.5	8	194
136	67	88	120	8500	≤6.80	88.0±0.5	≤121.5	8	163
137	43	103	202	8800	≤4.4	103±0.5	≤203.5	6	205
138	100	59	151	9000	≤10.1	58.5±0.51	≤152.0	6	190
139	67	89	182	9000	≤6.80	89.0±0.50	≤184.0	6	233
140	70	88	120	9000	≤7.20	88.0±0.50	≤121.5	8	174
141	80	98	98	9000	≤8.0	98.0±0.50	≤100.0	10	169
142	67	73	160	9000	≤6.80	73±0.5	≤161.5	8	175.0
143	70	88	120	9000	≤7.20	88±0.50	≤121.50	8	170.0
144	80	98	98	9000	≤8.00	98.0±0.50	≤100.0	8	168.0
145	94	79	105	9200	≤9.50	78.5±0.5	≤105.50	8	174
146	94	79	105	9200	≤9.50	78.5±0.50	≤105.5	8	172.0
147	100	92	110	9500	≤10.0	92.0±1	≤113.5	6	226.0
148	100	59	156	10000	≤10.2	59.5±0.5	≤159.5	5	205
149	100	80	120	10000	≤10.0	79.5±0.5	≤120.0	10	201
150	64	122	140	10000	≤6.50	123.0±0.5	≤141.0	6	220
151	87	63	203	10000	≤8.8	63.0±0.5	≤203.5	5	258.0
152	100	65	156	10000	≤10.0	65.5±0.5	≤157.0	6	212
153	60	70	271	10000	≤6.1	70±0.5	≤271.0	5	262.0
154	64	80	230	10000	≤6.50	80.5±0.5	≤231.0	6	258
155	70	89	182	10000	≤7.1	89.0±0.50	≤184.50	8	258
156	87	90	140	10000	≤8.8	89.5±0.5	≤142.5	5	250.0
157	94	90	140	10000	≤9.40	90.0±0.5	≤142.5	5	257
158	90	100	130	10000	≤9.1	99.5±0.50	≤133.0	6	258
159	64	122	140	10000	≤6.7	123±0.50	≤141.0	8	256
160	54	103	202	10000	≤5.4	103.0±0.5	≤203.5	5	245.0
161	100	67	156	10000	≤10.0	67.5±0.5	≤159.5	6	225
162	70	72	196	10000	≤7.20	72.0±0.5	≤196.5	5	218
163	90	59	156	10000	≤9.20	59.5±0.50	≤159.0	6	190
164	64	63	203	10000	≤6.40	63.0±0.5	≤203.5	6	191
165	90	67	140	10000	≤9.0	67.0±0.50	≤142.0	8	187
166	90	59	156	10000	≤9.30	59.5±0.5	≤159.0	6	190
167	64	63	203	10000	≤6.40	63±0.50	≤203.5	6	192.0
168	90	67	140	10000	≤9.2	67.0±0.5	≤142.0	8	192
169	84	88	120	10000	≤8.40	88±0.50	≤121.50	10	195.0
170	94	98	98	10000	≤9.50	98.5±0.5	≤101.0	8	195
171	75	72	196	10200	≤7.6	72.5±0.5	≤197.0	5	220
172	94	59	151	10200	≤9.50	58.5±0.5	≤151.5	8	194
173	64	122	140	10400	≤6.5	123.0±0.5	≤141.0	6	232
174	94	90	150	10400	≤9.5	90±0.5	≤153.0	5	259.0
175	74	90	150	10500	≤7.5	90.0±0.5	≤152.5	5	215
176	60	80	230	10500	≤6.1	80.5±0.5	≤231.0	6	238
177	54	103	202	10500	≤5.4	103±0.5	≤203.5	5	238
178	68	72	196	10500	≤6.80	72.5±0.50	≤196.5	5	206
179	67	89	182	10600	≤6.80	89.0±0.5	≤184.5	6	237
180	90	90	140	10600	≤9.1	90.0±0.5	≤142.0	5	240
181	74	72	196	10700	≤7.5	72.5±0.50	≤196.5	6	218
182	84	63	203	10800	≤8.50	63.5±0.5	≤204.5	5	235
183	74	72	196	10800	≤7.50	72.0±0.5	≤196.5	5	232
184	77	72	196	10800	≤7.80	72.0±0.5	≤196.5	5	234
185	90	90	160	11000	≤9.1	90.5±0.50	≤163.0	5	277
186	70	103	132	11000	≤7.0	103.0±0.5	≤133.0	8	213.0
187	97	103	132	12000	≤9.80	103.0±0.5	≤133.5	5	294
188	87	73	160	12000	≤8.8	73.0±0.50	≤163.0	5	232
189	54	122	200	12400	≤5.50	122.5±0.5	≤200.5	5	279
190	97	90	150	12500	≤9.80	90.0±0.5	≤153.5	5	300
191	97	63	203	12500	≤9.80	63.5±0.5	≤204.0	4	278
192	94	103	132	12500	≤9.50	103.0±0.50	≤133.0	5	277
193	87	70	171	12600	≤8.80	70.0±0.50	≤172.5	5	235
194	97	90	160	13000	≤9.8	90.5±0.50	≤163.0	6	328
195	90	94	156	14000	≤9.20	94.0±0.50	≤157.5	4	291
196	97	90	140	14000	≤9.8	90±0.50	≤142.5	6	268.0
197	84	90	160	14000	≤8.50	90.0±0.50	≤162.0	8	272.0
198	84	103	202	15000	≤8.3	103±0.50	≤205.0	5	385
199	67	122	200	15000	≤6.7	122.5±0.50	≤201.0	5	380
200	94	110	160	15000	≤9.50	110.0±0.50	≤160	5	360
201	80	89	182	15000	≤8.10	89.0±0.50	≤184.5	5	285
202	57	112	248	15300	≤5.8	112.0±0.5	≤248.0	6	242
203	64	122	200	15300	≤6.5	122.5±0.50	≤200.5	4	338
204	97	89	182	15500	≤10.0	89.0±0.50	≤184.50	3	363
205	97	89	182	16000	≤10.0	89.5±0.5	≤184.5	5	353
206	80	122	140	16000	≤8.1	123.5±0.5	≤142.0	5	299
207	100	55	271	18000	≤10.0	55.5±0.50	≤271.0	5	335
208	100	55	271	18000	≤10.1	55.5±0.50	≤271.0	4	339
209	64	129	182	18500	≤6.4	129.0±0.5	≤183.0	5	346
210	64	129	182	18500	≤6.40	129.0±0.5	≤183.0	5	346
211	87	122	200	20000	≤8.8	122.5±0.50	≤201	4	505
212	80	122	200	20000	≤8.1	122.5±0.50	≤201.5	4	438
213	100	89	182	20000	≤10.2	89.0±0.50	≤184.5	4	372
214	78	101	197	20000	≤7.90	101.3±0.5	≤197.0	4	368
215	97	122	140	20000	≤9.80	123.5±0.50	≤142.0	5	370
216	70	129	182	20000	≤7.10	129.0±0.50	≤183.0	5	369
217	84	103	202	20000	≤8.50	103±0.50	≤203.5	5	386.0
218	100	122	140	20000	≤10.20	123.5±0.50	≤141.5	5	388
219	97	89	230	20300	≤9.80	89.0±0.50	≤231.0	4	444
220	90	96	252	21000	≤9.10	96.0±0.50	≤252.0	4	470
221	60	121	276	22700	≤6.1	121.0±0.5	≤276.0	5	482.0
222	100	94	271	27000	≤10.1	93.5±0.50	≤271.0	3	585
223	80	324	172	50000	≤8.0	324.5±0.50	≤172.0	3	1015
