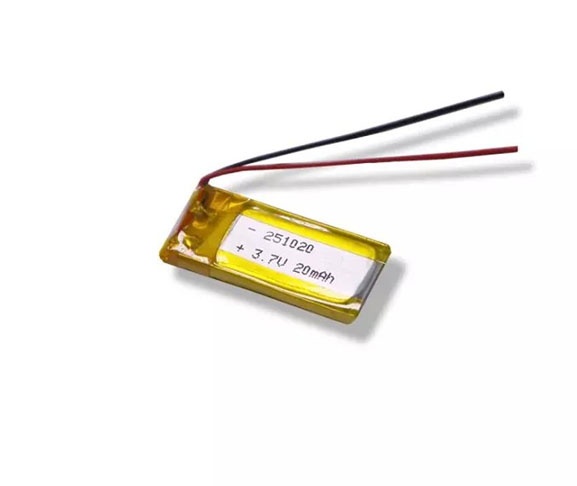

Ultra small Lithium polymer battery PD251020 3.7V 20mAh

Ultra small Lithium polymer battery PD251020 3.7V 20mAh

Short Description:

3.7V 20mAh ultra small size lithium polymer battery PD251020.

Description

Ultra small lithium polymer battery
Model: PD251020
Capacity:20mah
Voltage;3.7V
Thickness:2.5mm (PCM part max 3.3±0.2mm)
Width:10.0±0.2mm
Height:22.0±0.5mm
Weight: about 0.8g
Recommend charging current: 0.2C
Standard charging current: 0.5C
Cable and connectors:standard,recommended or customized are available.
PCB/PCM:
Over-charge voltage 4.25V±0.05V
Over discharge voltage :2.7V±0.1V or 3.0V±0.1V
Over curernt: 40mA(2.7V~4.25V)customized

For more models click here, if you don’t find the right model for your application, please do contact Padre sales,they will recommend you the best one among  more than 3000 models now, you can send inquiry with your requirements at below, and you will get reply very soon.
